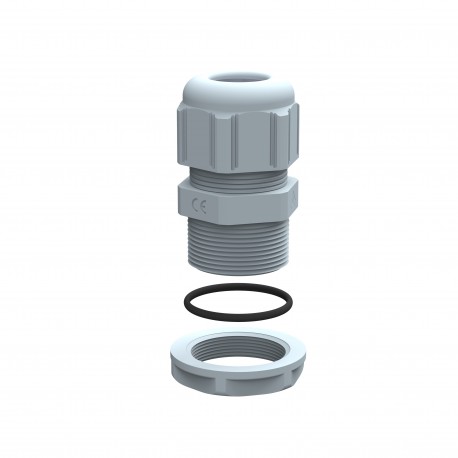

LEGRAND 098007 098007 LEGRAND GASKET IP68 ISO 40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

098007 LEGRAND GASKET IP68 ISO 40

098007

098007

LEGRAND

3 Pcs.

GASKET IP68 ISO 40 Cable gland plastic - IP68 - ISO 40 - clamping capacity 22-32 mm - RAL 7001 Plastic cable glands - IP68 - ISO 40 - RAL 7001

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

381585 LEGRAND GASKET IP68 ISO 40 is a specialized sealing gasket configured to provide an IP68 barrier around threaded cable entries and bulkhead connectors. Such sealing elements ensure high-integrity protection against liquid and particle ingress in demanding industrial electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Screened (EF000881): No
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Snapping in opening (EF012547): Yes
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7001
  • With strain relief (EF000878): No
  • Bend radius protection/trumpet flare (EF000734): No
  • Multi seal area (EF005004): No

More info

▲
  • Pack (number of units)3
  • Volume (dm3)1.408
  • Weight (g)281.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
ISO
  • Conform to EN 50 262
  • ISO : 40
  • Clamping capacity Ø Min. : 22 mm
  • Clamping capacity Ø Max. : 32 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
