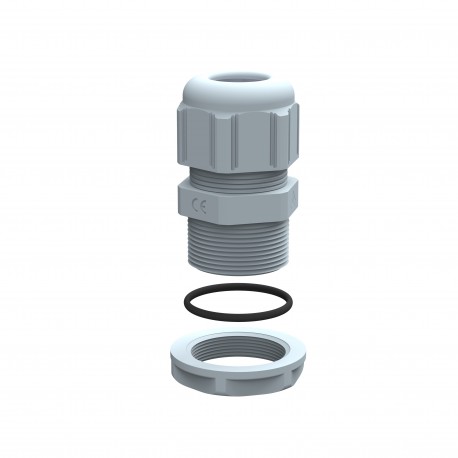

098006 LEGRAND GASKET IP68 ISO 32
098006
098006
LEGRAND
5 Pcs.
GASKET IP68 ISO 32
Cable gland plastic - IP68 - ISO 32 - clamping capacity 18-25 mm - RAL 7001
Plastic cable glands - IP68 - ISO 32 - RAL 7001
Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)1.409
- Weight (g)268.00
Product characteristics
Grey RAL 7001 cable glands- Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
- Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
- Supplied with surface seal and locking nut mounted
- Conform to EN 50 262
- ISO : 32
- Clamping capacity Ø Min. : 18 mm
- Clamping capacity Ø Max. : 25 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG| Feature Name | Feature Value |
|---|---|
| Flat cable coupling (EF004685) | No |
| For Ex-zone dust (EF008404) | None |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Material (EF002169) | Plastic |
| Screened (EF000881) | No |
| Separable screw gland (EF005337) | No |
| Glass-fibre reinforced (EF001210) | No |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Snapping in opening (EF012547) | Yes |
| Operating temperature (EF001742) | -20 °C |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7001 |
| With strain relief (EF000878) | No |
| Bend radius protection/trumpet flare (EF000734) | No |
| For Ex-zone gas (EF005728) | None |
| Multi seal area (EF005004) | No |
| Hexagon angular dimension (EF005268) | 58.5 mm |
| Suitable for cable diameter (EF005466) | 18 mm |
| Model (EF000010) | Straight |
| Wrench width (EF000177) | 42 mm |
| With locknut (EF005049) | Yes |
| Explosion-tested version (EF004191) | No |
| EMC-version (EF001062) | No |
| For armoured cable (EF012184) | No |
| Thread length (EF000368) | 42 mm |
| Type of sealing (EF001217) | EV009696 |
| Colour (EF000007) | Grey |
| Pitch thread (EF003712) | 1.5 mm |
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Nominal thread size metric/PG (EF007839) | 32 |
