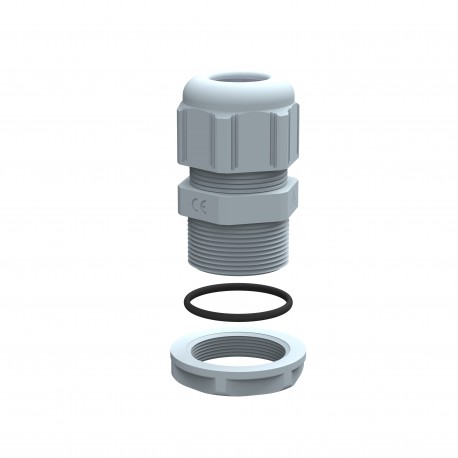

LEGRAND 098005 098005 LEGRAND GASKET IP68 ISO 25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

098005 LEGRAND GASKET IP68 ISO 25

098005

098005

LEGRAND

10 Pcs.

GASKET IP68 ISO 25 Cable gland plastic - IP68 - ISO 25 - clamping capacity 12-18 mm - RAL 7001 Plastic cable glands - IP68 - ISO 25 - RAL 7001

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 098005 gasket delivers robust sealing performance for ISO 25 threaded infrastructure. Gaskets and cable couplings are routinely deployed in electrical distribution panels to maintain enclosure integrity against environmental elements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Screened (EF000881): No
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Snapping in opening (EF012547): Yes
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7001
  • With strain relief (EF000878): No
  • Bend radius protection/trumpet flare (EF000734): No
  • Multi seal area (EF005004): No

More info

▲
  • Pack (number of units)10
  • Volume (dm3)1.409
  • Weight (g)302.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
ISO
  • Conform to EN 50 262
  • ISO : 25
  • Clamping capacity Ø Min. : 12 mm
  • Clamping capacity Ø Max. : 18 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
