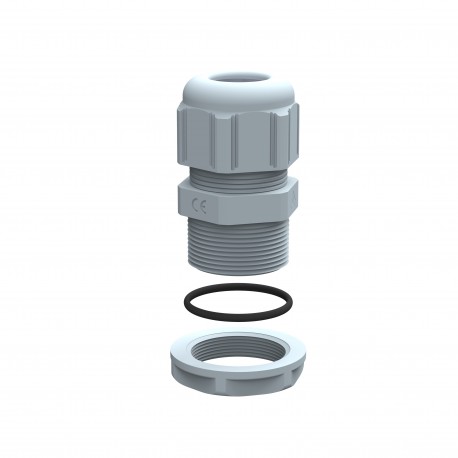

098001 LEGRAND GASKET IP68 ISO 16
098001
098001
LEGRAND
25 Pcs.
GASKET IP68 ISO 16
Cable gland plastic - IP68 - ISO 16 - clamping capacity 4-8 mm - RAL 7001
Plastic cable glands - IP68 - ISO 16 - RAL 7001
Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
098001 Legrand gasket IP68 ISO 16 is a sealing element used with threaded fittings to maintain a watertight and dustproof barrier around cable entry points in electrical installations.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Flat cable coupling (EF004685): No
- Shock resistant (EF000084): Yes
- Degree of protection (IP) (EF005474): IP68
- Material (EF002169): Plastic
- Screened (EF000881): No
- Separable screw gland (EF005337): No
- Glass-fibre reinforced (EF001210): No
- Halogen free (EF000025): Yes
- Material quality (EF001257): Polyamide (PA)
- Snapping in opening (EF012547): Yes
- Operating temperature (EF001742): -20 °C
- Surface protection (EF000139): Untreated
- RAL-number (EF000116): 7001
- With strain relief (EF000878): No
- Bend radius protection/trumpet flare (EF000734): No
- Multi seal area (EF005004): No
More info
▲- Pack (number of units)25
- Volume (dm3)1.06
- Weight (g)252.00
Product characteristics
Grey RAL 7001 cable glands- Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
- Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
- Supplied with surface seal and locking nut mounted
- Conform to EN 50 262
- ISO : 16
- Clamping capacity Ø Min. : 4 mm
- Clamping capacity Ø Max. : 8 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
