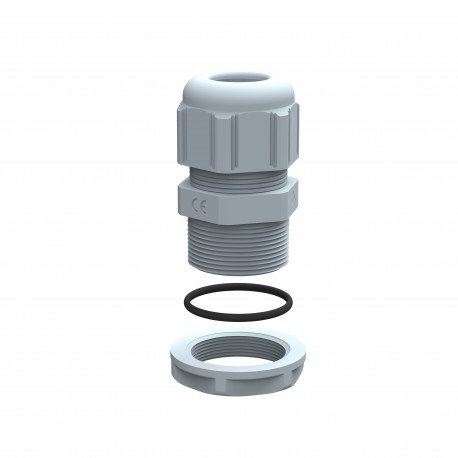

LEGRAND 098000 098000 LEGRAND CABLE GLAND IP68 ISO 12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

098000 LEGRAND CABLE GLAND IP68 ISO 12

098000

098000

LEGRAND

25 Pcs.

CABLE GLAND IP68 ISO 12 Cable gland plastic - IP68 - ISO 12 - clamping capacity 3-6.5 mm - RAL 7001 Plastic cable glands - IP68 - ISO 12 - RAL 7001

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand cable gland (098000) maintains enclosure integrity by sealing cable feed-through points against external moisture, dust, and mechanical pull forces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Screened (EF000881): No
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Snapping in opening (EF012547): Yes
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7001
  • With strain relief (EF000878): No
  • Bend radius protection/trumpet flare (EF000734): No
  • Multi seal area (EF005004): No

More info

▲
  • Pack (number of units)25
  • Volume (dm3)1.06
  • Weight (g)174.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
ISO
  • Conform to EN 50 262
  • ISO : 12
  • Clamping capacity Ø Min. : 3 mm
  • Clamping capacity Ø Max. : 6.5 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
