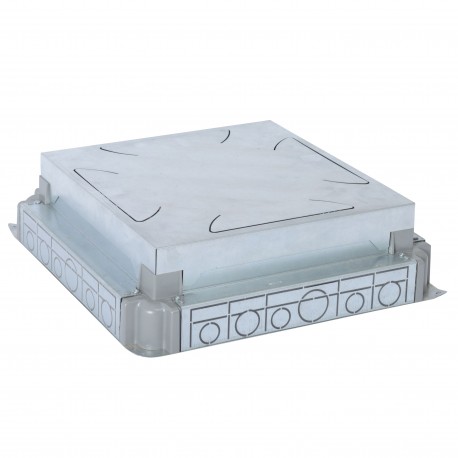

LEGRAND 088092 088092 LEGRAND BUCKET SELF-ADJUSTING 16/24M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

088092 LEGRAND BUCKET SELF-ADJUSTING 16/24M

088092

088092

LEGRAND

1 Pcs.

BUCKET SELF-ADJUSTING 16/24M Auto-adjusting backbox for standard or flush version floor boxes - for concrete floor - 16/24 modules Self-adjusting bucket box floor rectangular and frameless - 16/24m

Automation > Service box for underfloor installation
COLUMN WIRING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 088092 bucket self-adjusting 16/24m is a floor service box engineered to provide recessed, adaptable power and data connectivity in raised or screed flooring environments. Such units enable streamlined cable management and secure device integration for workstations located away from perimeter walls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Levelling range (EF005136): 65 mm
  • Built-in opening for floor column (EF004641): No
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Suitable for placing of sealing (EF004594): No
  • Duct height (EF005459): 25 mm
  • Nominal dimension (EF000132): 225 mm
  • Duct width (EF007884): 75 mm
  • Bottom plate (EF004544): No
  • Material side wall (EF008133): Steel
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Min. height finishing layer (EF007935): 65 mm
  • Built-in opening for built-in unit (EF007738): Square
  • Number of appliances to build in (EF000219): 0

More info

▲
  • Pack (number of units)1
  • Volume (dm3)14.118
  • Weight (g)2 239.00
Product characteristics
Auto-adjusting backboxes for concrete floor
  • Screed height: 65 to 90 mm
For floor boxes (standard or flush version)
  • For floor boxes 16/24 modules Cat.Nos 0 880 22/25/41 and 0 881 22/25/41
General characteristics
Auto-adjusting backboxes for floor boxes and access covers
  • Conform to standard IEC/EN 60670-23
