View larger
Images are for illustrative purposes only. Please refer to data sheet for details

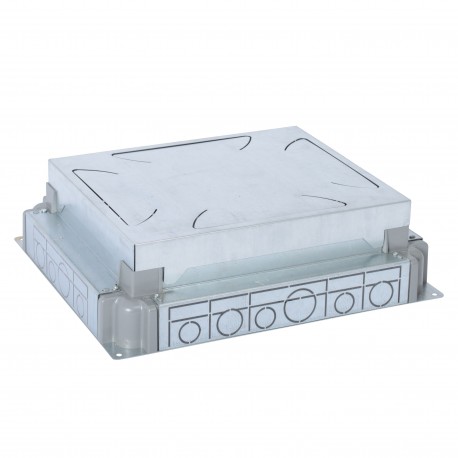

088091 LEGRAND BUCKET SELF-ADJUSTING 12/18M
088091
088091
LEGRAND
1 Pcs.
BUCKET SELF-ADJUSTING 12/18M
Auto-adjusting backbox for standard or flush version floor boxes - for concrete floor - 12/18 modules
Self-adjusting bucket box floor rectangular and without frame - 12/18m
Automation > Service box for underfloor installation
COLUMN WIRING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)12.266
- Weight (g)1 988.00
Product characteristics
Auto-adjusting backboxes for concrete floor- Screed height: 65 to 90 mm
- For floor boxes 12/18 modules Cat.Nos 0 880 21/24/40 and 0 881 21/24/40
General characteristics
Auto-adjusting backboxes for floor boxes and access covers- Conform to standard IEC/EN 60670-23
| Feature Name | Feature Value |
|---|---|
| Levelling range (EF005136) | 65 mm |
| Built-in opening for floor column (EF004641) | No |
| Decoupling possibility cover from base unit (EF007745) | Yes |
| Suitable for placing of sealing (EF004594) | No |
| Duct height (EF005459) | 25 mm |
| Nominal dimension (EF000132) | 225 mm |
| Duct width (EF007884) | 75 mm |
| Bottom plate (EF004544) | No |
| Material side wall (EF008133) | Steel |
| Suitable for subfloor duct countersunk (closed) (EF005792) | Yes |
| Suitable for subfloor duct overhead closed (EF006408) | No |
| Min. height finishing layer (EF007935) | 65 mm |
| Built-in opening for built-in unit (EF007738) | Rectangular |
| Number of appliances to build in (EF000219) | 0 |
