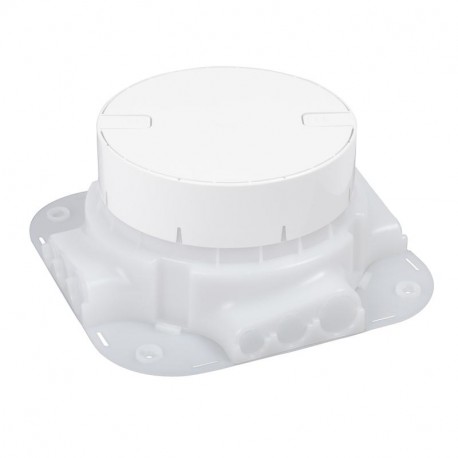

LEGRAND 088069 088069 LEGRAND BOX FLOOR PAVEMENT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

088069 LEGRAND BOX FLOOR PAVEMENT

088069

088069

LEGRAND

1 Pcs.

BOX FLOOR PAVEMENT Legrand IP66 Floor Box Auto-Adjustable Back Box Floor box tray IP66 - with lid

Automation > Service box for underfloor installation
COLUMN WIRING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A floor pavement box serves as a recessed access point for power and data connections embedded directly into finished flooring materials. The Legrand 088069 model accommodates multiple internal devices within standard screed installations while keeping cables protected. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Levelling range (EF005136): 65 mm
  • Built-in opening for floor column (EF004641): No
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Suitable for placing of sealing (EF004594): No
  • Duct height (EF005459): 16 mm
  • Nominal dimension (EF000132): 25 mm
  • Duct width (EF007884): 16 mm
  • Bottom plate (EF004544): No
  • Material side wall (EF008133): Plastic
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Min. height finishing layer (EF007935): 65 mm
  • Built-in opening for built-in unit (EF007738): Round
  • Number of appliances to build in (EF000219): 2

More info

▲
Auto-adjustable back box for installing IP 66 floor boxes in concrete floors Supplied with cover Accepts conduits Ø16, 20, 25 mm Minimum screed height: 65 mm
Nominal dimension25 mm
Min. height finishing layer65 mm
Levelling range65-97 mm
Suitable for subfloor duct countersunk (closed)Yes
Suitable for subfloor duct overhead closedNo
Duct height16-25 mm
Duct width16-25 mm
Built-in opening for floor columnNo
Built-in opening for built-in unitRound
Number of appliances to build in2
Material side wallPlastic
Suitable for placing of sealingNo
Decoupling possibility cover from base unitYes
Bottom plateNo
