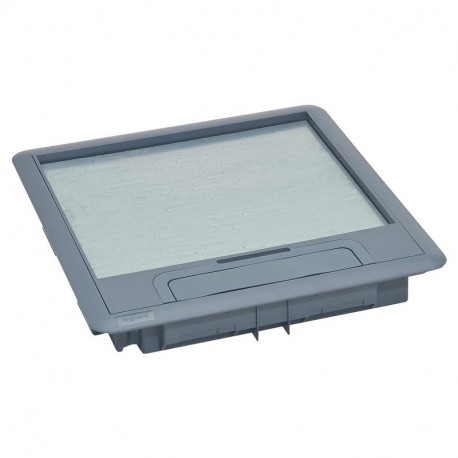

LEGRAND 088002 088002 LEGRAND COVER BOX FLOOR PLAST 16/24M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

088002 LEGRAND COVER BOX FLOOR PLAST 16/24M

088002

088002

LEGRAND

1 Pcs.

COVER BOX FLOOR PLAST 16/24M Plastic lid and trim for standard version floor boxes 16/24 modules Cat.Nos 088022 / 088025 / 088041 Plastic cover for rectangular floor box 16/24mod Ref 0 880 22/25/41

Automation > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand plastic floor service box cover, identified as part number 088002, is designed to house and protect integrated power and communication connection modules within floor installations. These enclosures are commonly selected for commercial environments requiring reliable subfloor cable management combined with straightforward maintenance access. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Depth of flooring recess (EF005356): 8 mm
  • With opening carpeting (EF004541): Yes
  • Width built-in dimension (EF004566): 264 mm
  • Protective frame carpeting (EF004543): Yes
  • Cover model (EF009212): Rectangular
  • Number of device cups (EF000436): 1
  • Suitable for wet cleaning (EF005109): Yes
  • RAL-number (EF000116): 7031
  • Suitable for double floor built-in (EF006411): Yes
  • Suitable for hollow floor (EF006410): Yes
  • Length built-in dimension (EF004875): 264 mm
  • Min. built-in depth (EF005027): 41 mm
  • Outer length (EF024679): 286 mm
  • Suitable for subfloor duct (EF006409): No
  • Colour (EF000007): Grey

More info

▲
  • Pack (number of units)1
  • Volume (dm3)6.813
  • Weight (g)1 438.00
Product characteristics
Lids and trims for standard version floor boxes
Plastic lids and trims
  • For floor box 16/24 modules - Cat.Nos 0 880 22/25/41
General characteristics
Standard version floor boxes for raised or concrete floor
  • Conform to standard IEC/EN 60670-23

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
