View larger
Images are for illustrative purposes only. Please refer to data sheet for details

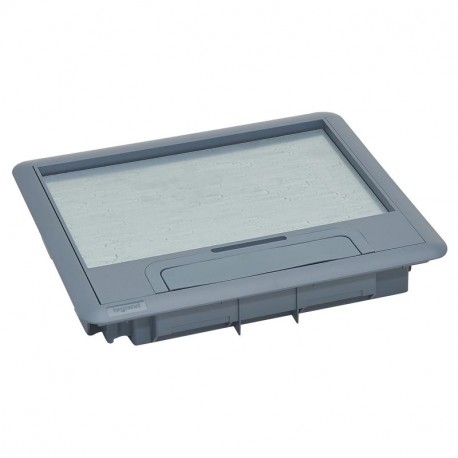

088001 LEGRAND COVER BOX FLOOR PLAST 12/18M
088001
088001
LEGRAND
1 Pcs.
COVER BOX FLOOR PLAST 12/18M
Plastic lid and trim for standard version floor boxes 12/18 modules Cat.Nos 088021 / 088024 / 088040
Indicator light, flush, red, +filament lamp, 24 V
Automation > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)6.056
- Weight (g)1 455.00
Product characteristics
Lids and trims for standard version floor boxesPlastic lids and trims
- For floor box 12/18 modules - Cat.Nos 0 880 21/24/40
General characteristics
Standard version floor boxes for raised or concrete floor- Conform to standard IEC/EN 60670-23
| Feature Name | Feature Value |
|---|---|
| Depth of flooring recess (EF005356) | 8 mm |
| With opening carpeting (EF004541) | Yes |
| Surface protection housing (EF024150) | Other |
| Housing material (EF001596) | Other |
| Width built-in dimension (EF004566) | 219 mm |
| Protective frame carpeting (EF004543) | Yes |
| Cover model (EF009212) | Rectangular |
| Number of device cups (EF000436) | 1 |
| Suitable for wet cleaning (EF005109) | Yes |
| RAL-number (EF000116) | 7031 |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for hollow floor (EF006410) | Yes |
| Length built-in dimension (EF004875) | 264 mm |
| Min. built-in depth (EF005027) | 41 mm |
| Outer length (EF024679) | 286 mm |
| Suitable for subfloor duct (EF006409) | No |
| Colour (EF000007) | Grey |
