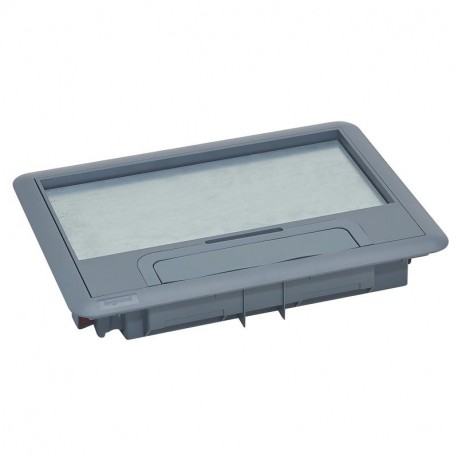

LEGRAND 088000 088000 LEGRAND COVER BOX FLOOR PLAST 8/12M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

088000 LEGRAND COVER BOX FLOOR PLAST 8/12M

088000

088000

LEGRAND

1 Pcs.

COVER BOX FLOOR PLAST 8/12M Plastic lid and trim for standard version floor boxes 8/12 modules Cat.Nos 088020 / 088023 / 088039 Plastic lid for rectangular floor box 8/12mod Ref 0 880 20/23/39

Automation > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand cover box floor plast 8/12m (part number 088000) serves as a durable cover assembly designed to protect and conceal floor-mounted utility distribution boxes. Such components maintain the aesthetic and physical integrity of floor installations while allowing safe, recessed access to power and communication cabling.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Depth of flooring recess (EF005356): 8 mm
  • With opening carpeting (EF004541): Yes
  • Width built-in dimension (EF004566): 181 mm
  • Protective frame carpeting (EF004543): Yes
  • Cover model (EF009212): Rectangular
  • Number of device cups (EF000436): 1
  • Suitable for wet cleaning (EF005109): Yes
  • RAL-number (EF000116): 7031
  • Suitable for double floor built-in (EF006411): Yes
  • Suitable for hollow floor (EF006410): Yes
  • Length built-in dimension (EF004875): 264 mm
  • Min. built-in depth (EF005027): 41 mm
  • Outer length (EF024679): 286 mm
  • Suitable for subfloor duct (EF006409): No
  • Colour (EF000007): Grey

More info

▲
  • Pack (number of units)1
  • Volume (dm3)5.279
  • Weight (g)1 188.00
Product characteristics
Lids and trims for standard version floor boxes
Plastic lids and trims
  • For floor box 8/12 modules - Cat.Nos 0 880 20/23/39
General characteristics
Standard version floor boxes for raised or concrete floor
  • Conform to standard IEC/EN 60670-23
