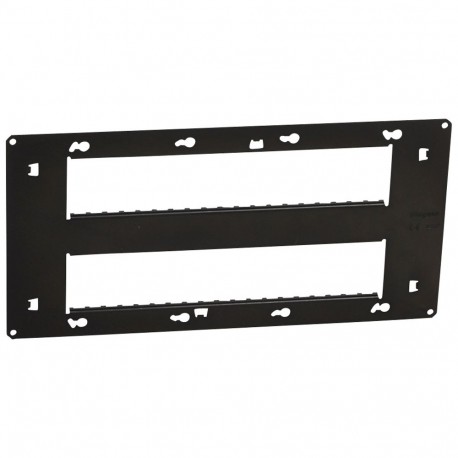

LEGRAND 080268 080268 LEGRAND MO-SUPPORT CENTR 2X10M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

080268 LEGRAND MO-SUPPORT CENTR 2X10M

080268

080268

LEGRAND

5 Pcs.

MO-SUPPORT CENTR 2X10M Support Mosaic - for 2 x 10 modules Mosaic Bracket - 2x10mod - 4 posts - Screw fixing

Automation > Holder for modular domestic switching devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 080268 LEGRAND MO-SUPPORT CENTR 2X10M is a heavy-duty metal module support frame built to accommodate extensive multi-gang electrical assemblies. These support structures provide maximum rigidity and precise alignment for large-scale wiring projects.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): No
  • With nail (EF000370): No
  • Model (EF000010): Flush mounted
  • Material (EF002169): Metal
  • Mounting method of the module inserts (EF009577): Front
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): No
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 2
  • Number of modules horizontal (module system) (EF009571): 10
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Galvanic/electrolytic zinc plated
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)5
  • Volume (dm3)3.355
  • Weight (g)1 493.00
Product characteristics
Supports with site protection
  • For 2 x 10 modules
  • Without site protection
General characteristics
Mosaic™ Programme supports
