View larger
Images are for illustrative purposes only. Please refer to data sheet for details

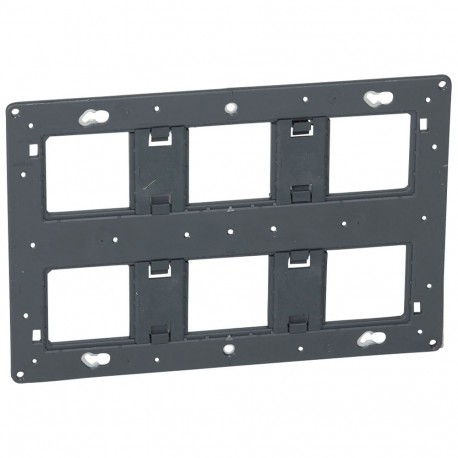

080266 LEGRAND MO-SUPPORT CENTR 2X6/8M
080266
080266
LEGRAND
5 Pcs.
MO-SUPPORT CENTR 2X6/8M
Support Mosaic - for 2 x 6, 2 x 8 or 2 x 3 x 2 modules
Mosaic Bracket - screw fixing - 2x3 posts - 2x6/8mod
Automation > Holder for modular domestic switching devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)3.233
- Weight (g)1 370.00
Product characteristics
Supports with site protection- For 2 x 6, 2 x 8 or 2 x 3 x 2 modules
- Without site protection
General characteristics
Mosaic™ Programme supports| Feature Name | Feature Value |
|---|---|
| With built-in installation box (EF025086) | No |
| With nail (EF000370) | No |
| Model (EF000010) | Flush mounted |
| Material (EF002169) | Metal |
| Mounting method of the module inserts (EF009577) | Front |
| Material quality (EF001257) | Other |
| Suitable for subfloor installation duct box (EF005864) | No |
| Mounting method (EF000003) | Mounting with screw |
| Suitable for mounting in round junction box 60 mm (EF009579) | No |
| With screws (EF005066) | No |
| Suitable for mounting on DIN-rail 35 mm (EF009580) | No |
| Suitable for wall duct (EF006572) | No |
| Number of modules vertical (module system) (EF009572) | 2 |
| Number of modules horizontal (module system) (EF009571) | 8 |
| Mounting direction (EF003824) | Horizontal and vertical |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Flush-mounted installation (EF007517) | Yes |
