View larger
Images are for illustrative purposes only. Please refer to data sheet for details

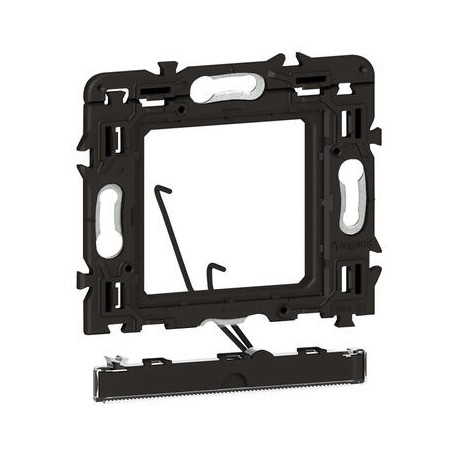

080262L LEGRAND MO-SUPPORT EASYLED 2M PILOT
080262L
080262L
LEGRAND
10 Pcs.
MO-SUPPORT EASYLED 2M PILOT
Support Mosaic EasyLed - pilot function - 1 position - 2 mód.
Mosaic EasyLed pilot function support - 1 post - 2mod
Automation > Lamp holder block for control circuit devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Luminous supports - Equipped with LEDs to create a luminous effect through the plate - Facilitates the identification of the mechanism in spaces with low light and in the dark - For 2 modules - Consumption: 1.4 WGeneral features
Mosaic - Supports| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated voltage Ue at AC 50 Hz (EF007029) | 230 V |
| Lamp type (EF002423) | LED |
| Type of fastening (EF002442) | Other |
| With integrated diode (EF001400) | Yes |
| With integrated voltage decreasing resistor (EF001399) | Yes |
| Voltage type for actuating (EF008242) | AC |
| Rated voltage Ue at AC 60 Hz (EF007030) | 230 V |
| Transformer integrated (EF001358) | No |
| Colour light source (EF001402) | White |
| Lamp holder (EF000048) | None |
| With light source (EF005905) | Yes |
