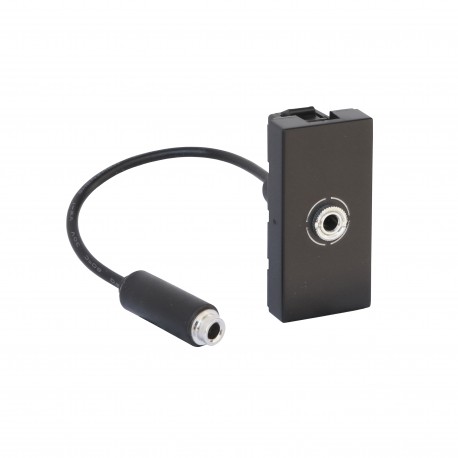

LEGRAND 079579L 079579L LEGRAND MO-BASE JACK3.5 1M CABL NM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

079579L LEGRAND MO-BASE JACK3.5 1M CABL NM

079579L

079579L

LEGRAND

1 Pcs.

MO-BASE JACK3.5 1M CABL NM Mosaic Jack 3.5mm audio base, female. 1 module. Pre-connectorized. Matte Black

Automation > Insert/cover for communication technology
VARIOUS VDI

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 079579L LEGRAND MO-BASE JACK3.5 1M CABL NM is an audio connector base module used to integrate 3.5mm jack connections into modular wall installations. Audio inserts of this type facilitate localized sound equipment patching in commercial and institutional environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With dust cover (EF003893): No
  • Material (EF002169): Plastic
  • Shielded buses (EF002444): No
  • Surface finishing (EF006569): Matt
  • Shielded housing (EF002445): No
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • With imprint (EF004048): No
  • Number of modules (module system) (EF009573): 1
  • Transparent (EF006243): No
  • With lighting (EF003829): No
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Luster terminal (EF003868): No
  • With hinged lid (EF000117): No

More info

▲
Jack 3.5 female pre-connectorized Mosaic base. 1 module. It can be used to create audio links. Modular, it is fixed with clips directly, plug and play. To connect with a jack cable. Minimum depth of the recessed box 50mm. IK04, IP40. Polycarbonate base, ABS plate. Matte black color.
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
UseDoor handle
Carrier RingNo
With dust protectionNo
With flip-top lidNo
Exit AddressStraight
Labeling fieldNo indication field
With printingNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface FinishMate
ColourBlack
TransparentNo
Attachment TypeLock in position
Number of modules (in case of modular design)1
Suitable for the number of sockets/couplings1
With voltage reliefNo
Shielded plugsNo
Shielded housingNo
Spider ClampNo
With lightNo
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Device width22.5 mm
Device height45 mm
Device Depth35 mm
Min. depth of the recessed box40 mm
Installation Depth23.8 mm
Operating Temperature-5-50 °C
Storage temperature-10-70 °C
