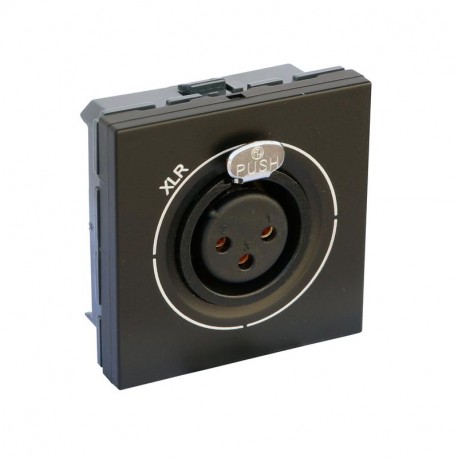

079555L LEGRAND MO-BASE XLR 3POL H 2M TORN NM
079555L
079555L
LEGRAND
1 Pcs.
MO-BASE XLR 3POL H 2M TORN NM
Mosaic XLR 3-pole audio base, female. 2 modules, screw connection. Matte Black
Automation > Insert/cover for communication technology
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
XLR socket or base female Mosaic. 3 poles. 2 modules. By screw. It allows the stereo connection of any peripheral (microphone, mixing console...). Supplied with tilting plates, to be equipped with frames and support plates. Maximum cable length: 50m. Recommended cable: 1 pair of shielded audio from 0.14 to 0.5 mm2. IK04, IP40. Polycarbonate base, ABS plate. Matte black color
| Type of mounting | Basic element with center cover plate |
|---|---|
| Use | XLR |
| Carrier Ring | No |
| With dust protection | No |
| With flip-top lid | No |
| Exit Address | Straight |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface Finish | Mate |
| Colour | Black |
| Transparent | No |
| Attachment Type | Lock in position |
|---|---|
| Number of modules (in case of modular design) | 2 |
| Suitable for the number of sockets/couplings | 1 |
| With voltage relief | No |
| Shielded plugs | No |
| Shielded housing | No |
| Spider Clamp | No |
| Impact resistance | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Installation Depth | 23 mm |
| Operating Temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| Utilization (EF000133) | XLR |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Black |
| Suitable for number of connectors (EF001579) | 1 |
