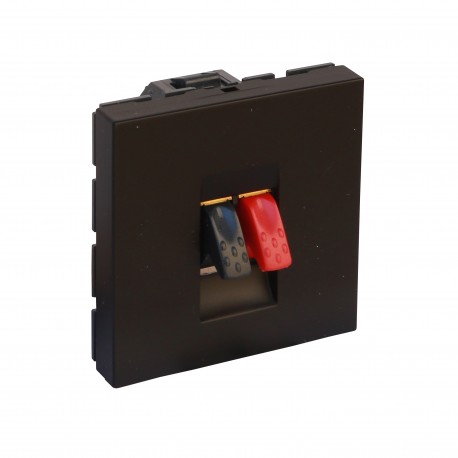

LEGRAND 079551L 079551L LEGRAND MO-BASE SPEAKER 2M NM

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

079551L LEGRAND MO-BASE SPEAKER 2M NM

Name: 079551L LEGRAND MO-BASE SPEAKER 2M NM
Brand: LEGRAND
SKU: 079551L

Reference: 079551L

Code: 079551L

Manufacturer: LEGRAND

Units per package: 10 Pcs.

Description:

MO-BASE SPEAKER 2M NM Mosaic speaker base for 4mm² terminal strip. 2 modules. Matte Black

Categories:
Automation > Insert/cover for communication technology
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 079551L LEGRAND MO-BASE SPEAKER 2M NM manufactured by Legrand functions as a specialized mounting base designed to cleanly terminate loudspeaker cables in flush wall boxes. Audio connection inserts organize wiring infrastructure for professional sound systems and residential entertainment spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

With dust cover (EF003893): No
Material (EF002169): Plastic
Surface finishing (EF006569): Matt
Type of fastening (EF002442): Engage (snap)
Material quality (EF001257): Thermoplastic
Halogen free (EF000025): Yes
Mounting method (EF000003): Flush mounted
With imprint (EF004048): No
Number of modules (module system) (EF009573): 2
Transparent (EF006243): No
Luster terminal (EF003868): No
Surface protection (EF000139): Untreated
With hinged lid (EF000117): No
With strain relief (EF000878): No
Support ring (EF005709): No
Utilization (EF000133): Loudspeaker connection

More info

▲

Mosaic speaker base for 4mm2 terminal strip. 2 modules. The mechanisms can be flush or surface mounted. Modular mechanisms by adapter ref. 0 802 99 (2 modules). Thin-walled mechanisms via adapter ref. 0 802 91 (2 modules). Polycarbonate base, ABS lid. Matte black color.

Type of mounting	Module for system interruption program, Recessed mounted (plaster)
Use	Speaker connection
Carrier Ring	No
With dust protection	No
With flip-top lid	No
Exit Address	Straight
Labeling field	No indication field
With printing	No
Material	Plastic
Material quality	Thermoplastic
Halogen-free	Yes
Antibacterial treatment	No
Surface treatment	No treatment
Surface Finish	Mate

Colour	Black
Transparent	No
Attachment Type	Lock in position
Number of modules (in case of modular design)	2
With voltage relief	No
Spider Clamp	No
Suitable for protection grade (IP)	IP41
Impact resistance	IK04
Device width	45 mm
Device height	45 mm
Device Depth	35 mm
Installation Depth	20 mm
Operating Temperature	-5-35 °C
Storage temperature	-10-70 °C
