View larger
Images are for illustrative purposes only. Please refer to data sheet for details
079478L LEGRAND MO-BASE HDMI AT 1M NM CABL
079478L
079478L
LEGRAND
1 Pcs.
MO-BASE HDMI AT 1M NM CABL

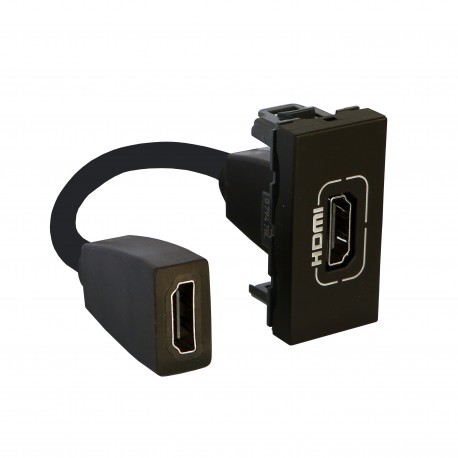

Mosaic wired HDMI base - 1 mód. - Matte black
Mosaic Audio and Video Base - HDMI Type A - pre-connectorized - 1mod - Matte black
Automation > Insert/cover for communication technology
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
HDMI Base Type A Version 2.0 Wired - 1 Module - Matte BlackGeneral features
Mosaic - Multimedia bases| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Lacquered |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9004 |
| Utilization (EF000133) | HDMI |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Device depth (EF008810) | 40 mm |
| With buses/couplings (EF005043) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Black |
| Suitable for number of connectors (EF001579) | 1 |
