View larger
Images are for illustrative purposes only. Please refer to data sheet for details

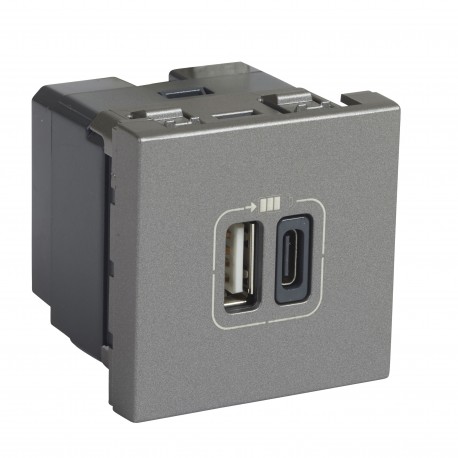

079392 LEGRAND MO-BASE USB A+C 3A 15W 2M TO THE
079392
079392
LEGRAND
1 Pcs.
MO-BASE USB A+C 3A 15W 2M TO THE
Double USB Type-A + Type-C charging sockets Mosaic - 5 V - 3 A - 15 W - 2 modules - alu
USB charger base 2mod two ports Type A+C - 3A - 15W - Aluminum
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.266
- Weight (g)74.00
Product characteristics
USB charging sockets Type-C- Universal charger for portable devices
- Conform to IEC 62680-1-3
- Surge protection greater than 1 kV
- Consumption in passive mode less than 0.07 W
- Power supply AC/DC efficiency at highest level (VI)
- 2 x 2.5 mm² screw terminals
- Class II SELV
- Supplied cordless
- For smartphones and fast charging tablets PC
- 2 modules
- Alu
- Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - USB charging sockets| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 42 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.066 W |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Aluminium |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 7040 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
