View larger
Images are for illustrative purposes only. Please refer to data sheet for details

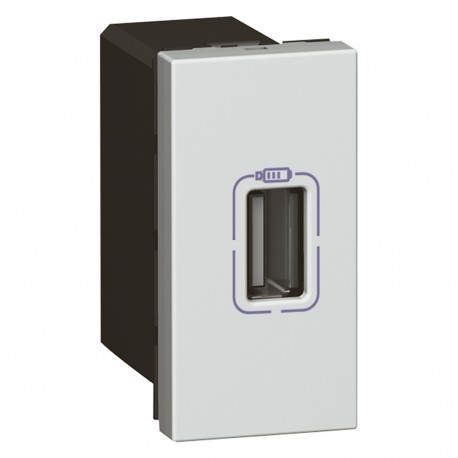

079391 LEGRAND MO-BASE USB 1M THE
079391
079391
LEGRAND
10 Pcs.
MO-BASE USB 1M THE
Single USB socket Mosaic - 5 V - 750 mA - 1 module - alu
USB charger base 1mod single port Type A - 1.5A - 7.5W - Aluminum
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)0.758
- Weight (g)281.00
Product characteristics
USB charging sockets Type-A- For recharging portable devices
- Conform to IEC 62684-2011-01
- Surge protection greater than 1 kV
- Consumption in passive mode less than 0.07 W
- Power supply AC/DC efficiency at highest level (VI)
- 2 x 2.5 mm² screw terminals
- Class II SELV
- Supplied cordless
- For fast charging smartphones and tablets PC
- 1 module
- Alu
General characteristics
Mosaic™ Programme mechanisms - USB charging sockets| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.066 W |
| Device width (EF008808) | 22.5 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Aluminium |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 7040 |
| Max. output current (EF001315) | 1500 mA |
| Frequency (EF000416) | 50 Hz |
