View larger
Images are for illustrative purposes only. Please refer to data sheet for details

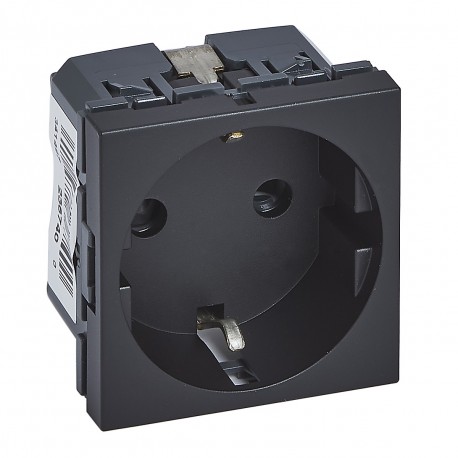

079351L LEGRAND 2P+T SCH TOR NEGR MAT 90 SOCKET
079351L
079351L
LEGRAND
10 Pcs.
2P+T SCH TOR NEGR MAT 90 SOCKET
Mosaic Plate - 1 module - Matte black
Mosaic Multiple Power Base - 2x2P+T - emb with screws - Matte Black
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Mosaic 2P+T 16A 250V power base or socket with screw terminals and child protection. 90º angle shots. Measurements: 45x45x32.5mm. IK04. IP41. Halogen-free polycarbonate material. UV resistant. Matte black color.
description
Mosaic 2P+T 16A 250V power base or socket with screw terminals and child protection. 90º angle shots. Measurements: 45x45x32.5mm. Capacity: 2x4mm2. IK04. IP41. Halogen-free polycarbonate material. UV resistant. Operating temperature - 5°C to + 35°C. Self-extinguishing at 850º. Matte black color RAL 9017.specifications
| Number of Units | 1 |
|---|---|
| Assembly Direction | Horizontal |
| Number of horizontal units | 1 |
| Number of vertical units | 1 |
| Number of modules horizontally (in case of modular design) | 1 |
| Number of vertical modules (in case of modular design) | 1 |
| With mounting frame | No |
| Flush mounting | Yes |
| Suitable for underfloor ducting | No |
| Suitable for device installation conduit | No |
| Suitable for built-in installation | Yes |
| Label Space/Print Area | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
|---|---|
| Colour | Black |
| RAL number (similar) | 9017 |
| Transparent | No |
| With flip-top lid | No |
| Protection Class (IP) | Other |
| Impact resistance | IK04 |
| Attachment Type | Lock in position |
| Width | 40 mm |
| Height | 82 mm |
| Depth | 9 mm |
| Installation height | 0 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Wood species in Latin | Not applicable |
| Wood certification (list) | Not applicable |
| Climate zone of the origin of the wood | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16 A |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Imprint/indication (EF003823) | None |
| With hinged lid (EF000117) | No |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 37 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 45 mm |
| With on/off switch (EF000488) | No |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| For heavy conditions according to VDE (EFDE0005) | No |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 2 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Matt |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| With function lighting (EF008861) | No |
| Transparent (EF006243) | No |
| Insulated mounting (EF001588) | Yes |
| Surface protection (EF000139) | Lacquered |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Lockable (EF000113) | No |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | Yes |
