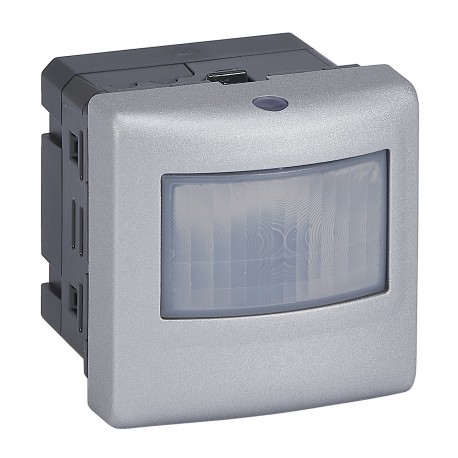

079258A LEGRAND DETECTOR 3H 500W MOSAIC AL
079258A
079258A
LEGRAND
1 Pcs.
Automation > Movement sensor complete
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand detector 3h 500w mosaic al (part number 079258A) is a flush-mounted movement sensor utilized in electrical installations to control lighting circuits automatically. Infrared presence and motion detectors improve energy efficiency in offices, hallways, and utility rooms by reacting to occupancy.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 45 mm
- With remote control (EF000483): No
- Bridging switch (EF001099): No
- Suitable for ceiling mounting (EF021180): No
- Staircase light controller (EF001098): Yes
- Connection type (EF000124): Screwed terminal
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Min. switch-on time (EF006589): 5 s
- Compatible with Apple HomeKit (EF014925): No
- Detection angle horizontal (EF006582): 85 °
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Min. depth of built-in installation box (EF012278): 30 mm
- Networkable (EF003904): No
- Response value sensitivity adjustable (EF003429): Yes
More info
▲Overview
3-wire automatic detector. 110-240 V~ 50/60 Hz, 8.5A. Supplied with bezel. To be equipped with a bracket and a cover plate. IK04 IP40. Power: 500W Leds/Fluocompact.
description
Universal circuit breakers with or without neutral, with infraredIt allows automatic control of a light source by detecting motion in its surveillance area. They replace traditional mechanical switches. Recessed mounting in a box at least 40 mm deep. Fixing by screws. Motion detectors with a detection angle of 170°. Detection range: up to 8 m. Material: PC mechanism, ABS cover. This unviversal automatic switch allows you to control the automatic switching on and off of the lights depending on the detection of people and the level of ambient light. Compatible with all bulbs, LED, halogen, compact fluorescent, etc. Powers: 500W Leds/Fluocompact - 2000W Halogen - 1000VA Leds, CFL, Halogen, fluorine tube with ferromagnetic or electronic transformer-
specifications
| Model | Motion Sensor |
|---|---|
| Sensor Type | Passive Infrared |
| With DALI interface | No |
| Constant light dimming | Yes |
| Control de HVAC | No |
| Forced connection | No |
| Forced disconnection | No |
| Animal Zone | No |
| Creep Protection/Field Monitoring | No |
| Background monitoring | No |
| Networkable | No |
| Scanning angle | 170 ° |
| Optimal mounting height | 1.2 m |
| Stair Lighting Controller | Yes |
| Bypass switch | No |
| Side reach | 4 m |
| Detection field presence max. | 25 m² |
| Front Reach | 8 m |
| Ground Sensing Diameter | 8 m |
| Suitable for wireless streaming | No |
| Remote control | Yes |
| With remote control | No |
| Adjustable response sensitivity | Yes |
| Adjustable response brightness | Yes |
| With signalling unit | Yes |
| Learn function for responsive brightness | No |
| Control function with control insert | No |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Connection Method | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Antibacterial treatment | No |
| Colour | aluminium |
| Transparent | No |
| Protection Class (IP) | IP20 |
| Type of voltage | AC |
| frequency | 47-63 Hz |
| Nominal Voltage | 240-240 V |
| Minimum duty cycle | 5 s |
|---|---|
| Maximum duty cycle | 30 min |
| Shutdown delay | 0 seconds |
| Power-on delay | 0 seconds |
| Horizontal detection angle | 85-85 ° |
| Sensor swivel angle, horizontal | 0-0 ° |
| Sensor swivel angle, vertical | 0-0 ° |
| Response brightness | 5-1275 lx |
| Max. switching power | 2000 W |
| Maximum LED power | 500 W |
| Suitable for C-load | Yes |
| Temperature | 5-35 °C |
| Number of switching zones | 1 |
| Control current | 0.15 mA |
| Input Extensions | Yes |
| Alarm function | No |
| With acoustic sensor | No |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 43.3 mm |
| Mounting width | 40.5 mm |
| Installation Depth | 24.6 mm |
| Installation Length | 40.5 mm |
| Min. depth of the recessed box | 30 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | 5-35 °C |
| Storage temperature | 0-45 °C |
| Standby consumption | 15 mA |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 0.75-3 mm² |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | No |
| Type of cable entry feedthroughs | Not applicable |
| Distance between horizontal clamping centers | 59.9-60.1 mm |
| Circuit breaker | Yes |
