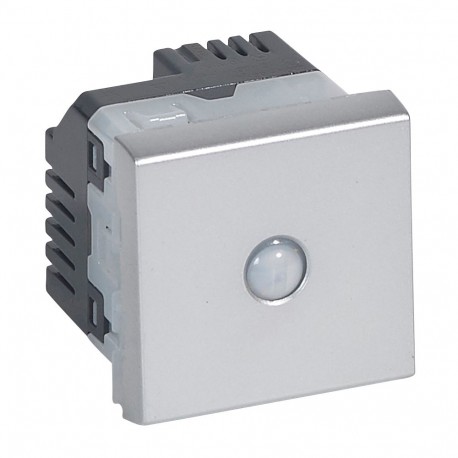

079215 LEGRAND MO-CONM 10AX 2M TO SAVING 10M

079215

079215

LEGRAND

1 Pcs.

MO-CONM 10AX 2M TO SAVING 10M Energy saving switch Mosaic - 10 AX 250 V~ - alu Mosaic Energy Saving Switch - 10AX - 250V~ - alu

Automation > Movement sensor complete
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 079215 is an energy-saving control module designed to manage lighting and electrical loads automatically based on occupancy and preset timing profiles. Control units of this kind help facility managers enforce energy conservation policies in commercial offices and educational spaces.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 74.7 mm
  • With remote control (EF000483): No
  • Bridging switch (EF001099): Yes
  • Staircase light controller (EF001098): Yes
  • Connection type (EF000124): Screwed terminal
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 600 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 130 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Response value sensitivity adjustable (EF003429): No
  • RAL-number (similar) (EF003882): 7040
  • Animal zone (EF006311): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.235
  • Weight (g)75.00
Product characteristics
Switches 10 AX - 250 V~
Energy saving switches
  • Automatic terminals
  • Are installed and work like conventional 2-way switches. In addition, they automatically switch off after 10 mins if no movement is detected by the built-in IR detection cell
  • Detection field: 160°. Detection range: 8 m
  • Compatible with any lamp:
    • 12-150 W: incandescent and 230 V halogen lamps
    • 12-150 VA: lamps with electronic or ferromagnetic ballast
    • 8-30 W (or 650 mA): LED and CFL
  • All types of lamps can be mixed on the same circuit
  • Ideal for rooms where the light may be left switched on needlessly (child’s bedroom, box room)
  • Alu
General characteristics
Mosaic™ Programme mechanisms - switches
  • All two-way switches with indicator have a terminal for neutral connection and have to be equipped with an indicator
