View larger
Images are for illustrative purposes only. Please refer to data sheet for details

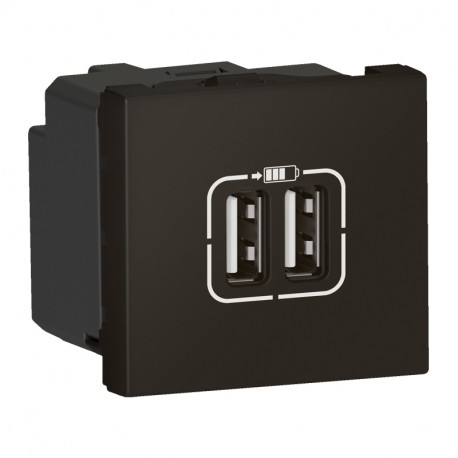

079194L LEGRAND MO-BASE CHARGE USB A+A 3A 2M NM
079194L
079194L
LEGRAND
1 Pcs.
MO-BASE CHARGE USB A+A 3A 2M NM
Usb charger base A+A Mosaic - 2 mód. - 3A 230V - Matte Black
2mod USB charger base two ports Type A+A - 3A - 15W - Matte black
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
USB 230 V type power bases - Allow you to quickly recharge the battery of a portable device without a mobile charger - For installation in recessed box, surface box, workstation, floor box, column, block and channel - Especially suitable for meeting tables or workstation - Release a base or a USB port on the PC - Complies with the EEC directive on the harmonization of the standard of recharging portable terminals and reduction of mobile chargers - Standby consumption less than 0.1 W - class II MBTS - Comply with IEC 62684-01 - Does not include cable 2 ports - 5 V - 1500 mA - For recharging mobile phone and smartphone, MP3 or MP4 player and digital tablet in fast charging - 2 modules - Matte blackGeneral features
Mosaic - Loader Bases| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 42 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.068 W |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| Number of ports USB-A (EF000997) | 2 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
