LEGRAND 079185L 079185L LEGRAND MO-USB C 2M 30W NM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

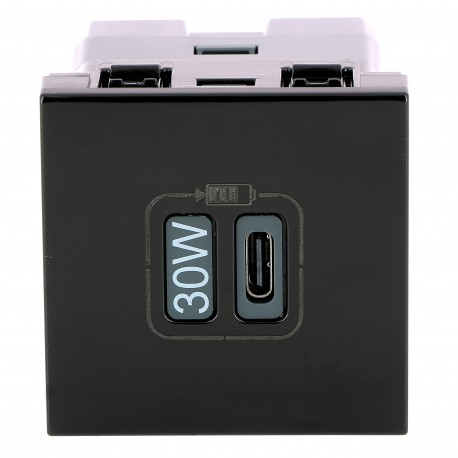

079185L LEGRAND MO-USB C 2M 30W NM

079185L

079185L

LEGRAND

1 Pcs.

MO-USB C 2M 30W NM USB Power Delivery 2 module charger base - Single Port Type C - 30W - Matte Black

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 079185L LEGRAND MO-USB C 2M 30W NM acts as a high-performance charging interface designed to integrate seamlessly into structural raceways and wall boxes. Building managers and technicians install these modules to provide reliable, fast charging for portable devices in modern working environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mounting method: Flush mounted
  • Suitable for degree of protection (IP): IP40
  • Connection type: Screwed terminal
  • Operating voltage: 100 V
  • Device depth: 45 mm
  • Impact strength: IK04
  • Anti-bacterial treatment: No
  • Number of ports USB-C: 1
  • Min. depth of built-in installation box: 40 mm
  • Output voltage: 5 V
  • Power consumption: 0.059 W
  • Device width: 45 mm
  • Device height: 45 mm
  • Colour: Black
  • Number of ports USB-A: 0
  • Max. output current: 3000 mA

More info

▲
1 USB type C charger base. 2 modules. 3A, 30 W, 5.0V. Power Delivery, 5- 9 -12-15V (Optimizes the load by supplying the terminal with as much voltage as it can withstand). Fast charging. Technology that allows a faster charge level than conventional ones, working through an exchange between the terminal and the charger. Matte black color RAL 9017. Depth 38mm. It can be installed in 40mm boxes. Compatible with Apple and Android devices. Recommended for indoor use. Dimension 45x45x45mm. IK04, IP40
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.059 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourBlack
Device width45 mm
Device height45 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth36.5 mm
Operating Temperature0-45 °C
Storage temperature-20-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output30
Nominal current1-1 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
