View larger
Images are for illustrative purposes only. Please refer to data sheet for details

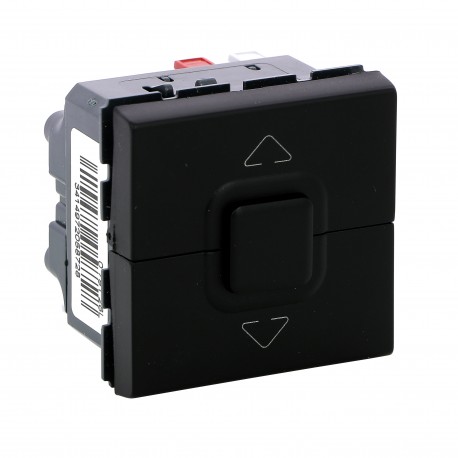

079128L LEGRAND MO-BUTTON DOUBLE SHUTTER NM
079128L
079128L
LEGRAND
1 Pcs.
MO-BUTTON DOUBLE SHUTTER NM
Mosaic blind push button, for 1 or several roller blinds. Matte Black
Automation > Venetian blind switch/-push button
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Double blind push button Mosaic, for 1 or several roller blinds. For direct control of motors: blinds and awnings. 6 AX, 250V, 50/60 Hz. It can be recessed in a box with a minimum depth of 40mm. 2 positions: up/down. No stop. Automatic terminal. Peeling 13 mm, terminal capacity 2x2.5mm2. IK04, IP41. Matt black RAL 9017
| Type of mounting | Basic Element, Module Housing Bracket |
|---|---|
| Model | 1-pole push button |
| Number of poles | 1 |
| Type of operation | Other |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Attachment Type | Other |
| Connection Method | Plug clamp |
| Colour | Black |
| Transparent | No |
| Label Space/Print Area | Yes |
| Suitable for protection grade (IP) | IP41 |
| Nominal current | 6 A |
| Nominal Voltage | 250 V |
|---|---|
| Number of buttons | 3 |
| Number of modules (in case of modular design) | 2 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 24 mm |
| Installation Depth | 36 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | Yes |
| Antibacterial treatment | No |
| Core cross-section | 2.5-2.5 mm² |
| Contains battery and/or accumulator | No |
| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | Yes |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Other |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Urea formaldehyde |
| Mounting method (EF000003) | Module frame/grid |
| Connection type (EF000124) | Screwless terminal |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 1 |
| Surface protection (EF000139) | Lacquered |
| Built-in depth (EF000218) | 36 mm |
| Number of buttons (EF003144) | 3 |
| Model (EF000010) | 1-pole push button |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 24 mm |
| Electronic controllable (EF006570) | No |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Basic unit |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 6 A |
| Colour (EF000007) | Black |
| Method of operation (EF000006) | Other |
