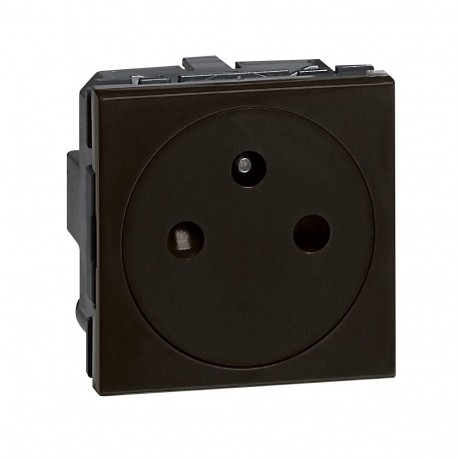

079121L LEGRAND 2P+T F/B BA SFC NOIR MAT
079121L
079121L
LEGRAND
10 Pcs.
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
079121L LEGRAND 2P+T F/B BA SFC NOIR MAT is a specialized power socket insert designed for modular grid frames within professional electrical distribution systems. This matte black unit integrates into dedicated safety circuits to supply protected power to sensitive electronics and essential equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Module frame/grid
- Special power supply (EF001334): Additional safety power supply (red)
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- With hinged lid (EF000117): No
More info
▲Overview
Simple 2P+T flush current bases with spigot. Facilitates cleaning and prevents dirt build-up. Automatic terminal blocks
specifications
| Model | Grounding plug |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Round |
| Number of active (round) contacts | 2 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Plug clamp |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Black |
| RAL number (similar) | 9017 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | Yes |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | Additional Safety Power (Red) |
| Type of mounting | Module Housing Bracket |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
|---|---|
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | Yes |
| With on/off switch | No |
| Switching element color | Black |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP41 |
| Impact resistance | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 38 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Installation Depth | 30 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Display of markings on the connection terminals | Yes |
| Core cross-section | 2.5-2.5 mm² |
| Cable Holder | Other |
| Cover | Center Cover Plate |
| Connected Object | No |
