View larger
Images are for illustrative purposes only. Please refer to data sheet for details

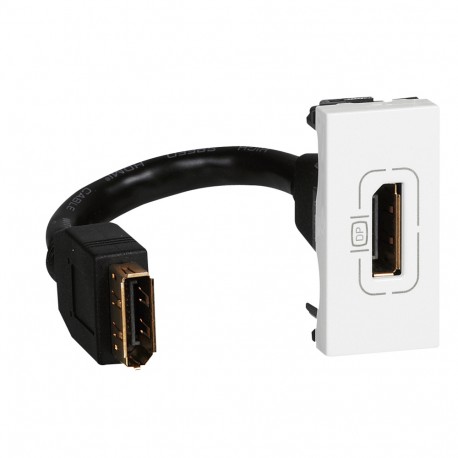

078791 LEGRAND MO-BASED DISPLAYPORT 1M BL CABLE
078791
078791
LEGRAND
1 Pcs.
MO-BASED DISPLAYPORT 1M BL CABLE
Display port socket Mosaic - preterminated - 1 module - white
Interface module, RS485
Automation > Insert/cover for communication technology
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.869
- Weight (g)62.00
Product characteristics
Display port socket- Used to transmit high-definition digital audio/video streams between a source (laptop, computer, etc) and a compatible receiver (videoprojector, TV…)
- Equipped with cord, length 15 cm
- Mosaic
- White
General characteristics
Mosaic™ Programme mechanisms - audio and video sockets| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | Yes |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Min. depth of built-in installation box (EF012278) | 50 mm |
| Luster terminal (EF003868) | No |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
