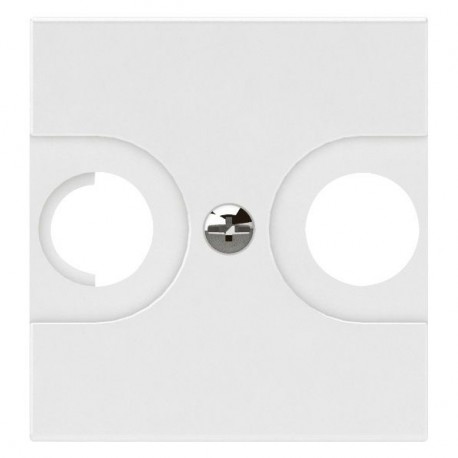

078785 LEGRAND MO-CAP BASE TV/R-SAT
078785
078785
LEGRAND
10 Pcs.
MO-CAP BASE TV/R-SAT
Lid for outlet TV/R/SAT - Mosaic - 2 modules - White
Mosaic Adapter for TV/R-SAT base - 2mod - White
Automation > Insert/cover for communication technology
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Bases of television - Connector TV male and R-female 9.5 mm, Sat "F" - recommended Cable 17 V (attenuation 17 dB over 100 m) - Distribution of TV signals and radio according to regulations - Installation in star, according to normtiva - 2 modules Bases TV-R-SAT - Based attenuation less than 1.5 dB adapted to the reception DTT, satellite or wired network - TV 5 - 68 and 120 ? 862 MHz - FM 87,5 -108 MHz - Sat 950 ? 2400 MHz - Bases shielded class A and compatible with 4G/Lte - WhiteGeneral characteristics
Mosaic - Bases of tv| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 11 mm |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
