View larger
Images are for illustrative purposes only. Please refer to data sheet for details

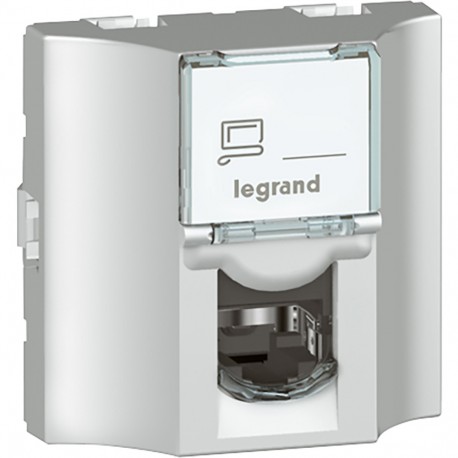

078627 LEGRAND MO-BASE RJ45 C6 FTP PAS 2M to THE
078627
078627
LEGRAND
10 Pcs.
MO-BASE RJ45 C6 FTP PAS 2M to THE
RJ45 socket Mosaic - rear pluggable - category 6 FTP - 9 contacts - aluminium
Mosaic Copper Through Base - Cat.6 FTP - 9 Contacts - 2mod - Aluminum
Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)2.189
- Weight (g)228.00
Product characteristics
Rear pluggable RJ 45 sockets- For use with area distribution boxes system
- Connection to boxes via RJ 45-RJ 45 cords
- Used to create Cat. 6A, 6 and 5e links in accordance with standards ISO 11801 ed.2.0, EN 50173-1 and EIA/TIA 568 B2
- Multi-directional cable entry
- Can be installed in all supports minimum depth 40 mm
- 2 modules
- 9 contacts
- Aluminium
General characteristics
Mosaic™ Programme mechanisms - rear pluggable RJ 45 sockets and switches| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | Yes |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| RAL-number (EF000116) | 0 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6 |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Aluminium |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
