View larger
Images are for illustrative purposes only. Please refer to data sheet for details

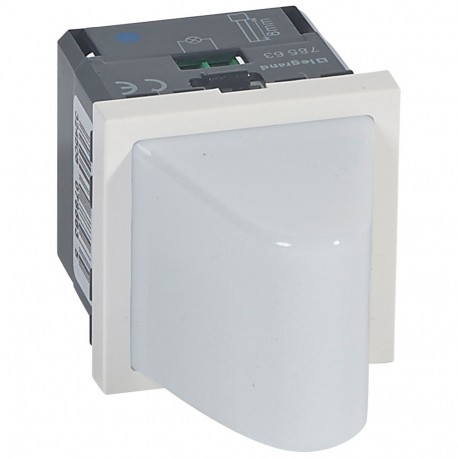

078563 LEGRAND MO-VIEWER BLUE 12-24-48V
078563
078563
LEGRAND
10 Pcs.
MO-VIEWER BLUE 12-24-48V
Bulkhead Mosaic - 12-24 V~/= - 0.6 W- 2 modules - Blue
Blue Mosaic Pilot - 12 - 24V~ - 2mod - White
Automation > Information light signal for domestic switching devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)1.89
- Weight (g)370.00
Product characteristics
Bulkheads- 2 modules
- Blue
General characteristics
Mosaic™ Programme mechanisms - illuminated signage functions, bulkhead lights, indicator lights and downlighter- All the illuminated functions are equipped with very low consumption LEDs with an estimated service life of 100,000 hours
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.7 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 24 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Colour light source (EF001402) | Blue |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | No |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 76.4 mm |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Application as button (EF003912) | No |
| Device height (EF008809) | 45 mm |
| Lamp holder (EF000048) | Other |
| Colour (EF000007) | Blue |
| With exchangeable symbol (EF006748) | Yes |
