> LEGRAND > SOLIROCO MECHANISMS > 077835
LEGRAND 077835 077835 LEGRAND SL-2P+T 16A C/COVER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

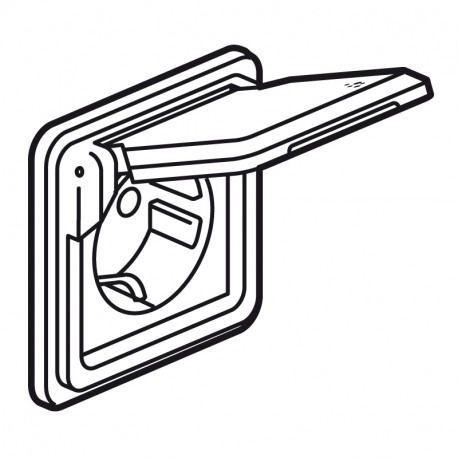

077835 LEGRAND SL-2P+T 16A C/COVER

077835

077835

LEGRAND

1 Pcs.

SL-2P+T 16A C/COVER Socket outlet Soliroc - German - 2P + E - screw terminals and cover - IP55 Soliroc Power Base - German - 2P + T - with cover - IP55 - 16A

Automation > Socket outlet
SOLIROCO MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 077835 SL-2P+T 16A C/COVER is a specialized socket outlet designed to supply electrical power safely within commercial and residential building infrastructure. Power outlets of this type provide a secure connection interface for portable electrical loads and appliances directly into a fixed wall installation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Mounting method (EF000003): Module frame/grid
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • With hinged lid (EF000117): Yes
  • Number of ports USB-A (EF000997): 0

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.68
  • Weight (g)236.00
Product characteristics
Socket outlets - IK 10
German standard 16 A - 250 V
  • 2P+E with safety shutters, screw terminals and cover
  • IP 55
General characteristics
Soliroc™ - sockets and mounting accessories IK 10
  • Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
  • High resistance to IK 10 impacts and humidity
  • 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
  • Mechanisms supplied complete with cover plates
