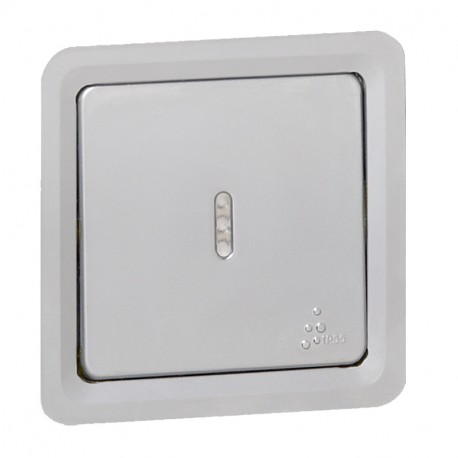

LEGRAND 077823 077823 LEGRAND SL-INT TEMP 2H 1000W 25S-15MIN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077823 LEGRAND SL-INT TEMP 2H 1000W 25S-15MIN

077823

077823

LEGRAND

1 Pcs.

SL-INT TEMP 2H 1000W 25S-15MIN Time delayed switch Soliroc - IP55 - without neutral - 2-wire - 1000 W Soliroc- IK10 - IP55 - neutral 2 wire - 1000W timed switch

Automation > Timer for domestic switching devices
SOLIROCO MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operate automated lighting or equipment intervals with the 077823 LEGRAND SL-INT TEMP 2H 1000W 25S-15MIN from Legrand. Timed switches provide automated load de-activation after a pre-set duration, helping optimize energy consumption in commercial and industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Surface finishing (EF006569): Matt
  • Mounting method (EF000003): Flush mounted
  • Halogen free (EF000025): Yes
  • Nominal voltage (EF000002): 250 V
  • Compatible with Apple HomeKit (EF014925): No
  • Transparent (EF006243): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Surface protection (EF000139): Metallic
  • Suitable for degree of protection (IP) (EF006755): IP55
  • IFTTT support available (EF011072): No
  • Assembly arrangement (EF000005): Basic unit
  • Time setting (EF001038): 0.41 min
  • Rated current (EF000227): 8 A
  • Colour (EF000007): Chrome

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.68
  • Weight (g)216.00
Product characteristics
Time-delayed switch - IK 10 - IP 55
  • Without neutral, 2-wire - 1000 W
  • For controlling 1000 W incandescent and halogen lighting 230 V~, 400 VA ELV halogen fluo lighting
  • For controlling a motor (eg: Ventilation) - 250 VA
  • Time delay from 25 s to 15 mins
General characteristics
Soliroc™ - control mechanisms IK 10
  • Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
  • High resistance to IK 10 impacts and humidity
  • 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
  • Mechanisms supplied with cover plates, to be equipped with support frames and plates
