> LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS > 077692L

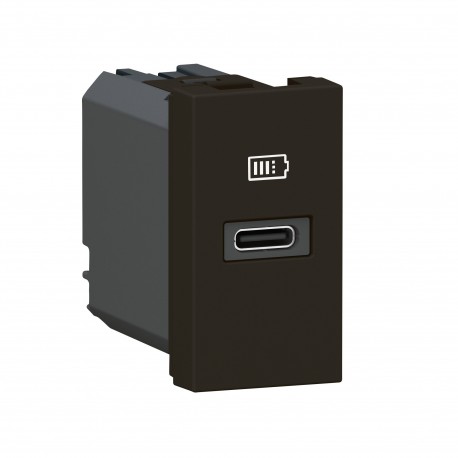

LEGRAND 077692L 077692L LEGRAND MO-USB C 1M 20W NM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077692L LEGRAND MO-USB C 1M 20W NM

077692L

077692L

LEGRAND

1 Pcs.

MO-USB C 1M 20W NM USB Power Delivery Charger Base 1 Single Port Type C Module - 20W- Matte Black USB Power Delivery 1mod single port Type C charger base - 20W- Matte Black

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Legrand 077692L USB-C charging module, this flush-mounted accessory provides high-output power delivery directly within architectural wall boxes. Devices of this category are standard additions to commercial and industrial workspaces for convenient power access. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.048 W
  • Device width (EF008808): 22.5 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7015

More info

▲
1 USB type C charger base with 1 module. 3A, 20W. Power Delivery, for optimal charging of portable devices (tablets, smartphones...) with fast charging function. USB Power Delivery is the new fast charging technology built into iOS/Apple and Android/Google devices. Technology that allows a faster charge level than conventional technologies, working through an exchange between the terminal and the charger. Matte black color.
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-12 V
Power consumption0.048 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourBlack
RAL number7015
Device width22.5 mm
Device height45 mm
Device Depth41 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth32.5 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output20
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
