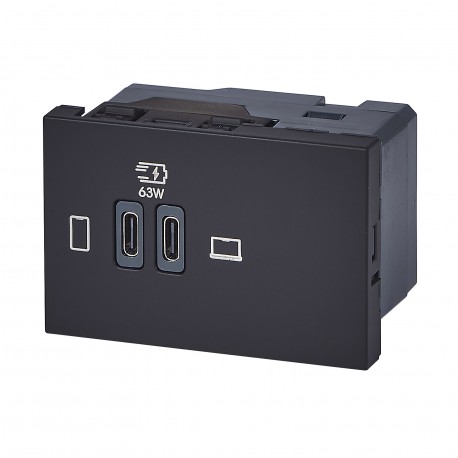

LEGRAND 077675L 077675L LEGRAND MO-2USB C+C 3M 63W NG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077675L LEGRAND MO-2USB C+C 3M 63W NG

077675L

077675L

LEGRAND

1 Pcs.

MO-2USB C+C 3M 63W NG USB Power Delivery Charger Base 3 modules two ports Type C+C - 63W - Matte Black USB Power Delivery 3mod charger base two ports Type C+C - 63W - Matte black

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Flush-mounted USB charger type 077675L LEGRAND MO-2USB C+C 3M 63W NG features high-wattage Type-C power output capabilities designed for demanding device charging environments. Commercial buildings, educational facilities, and modern workspaces routinely utilize such high-capacity modules to power multiple portable electronics simultaneously.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwless terminal
  • Operating voltage (EF003983): 220 V
  • Device depth (EF008810): 42 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.050 W
  • Device width (EF008808): 68 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9017

More info

▲
It allows you to power and charge multimedia terminals: PCs, tablets, smartphones. USB Power Delivery and Quick charge are new fast charging technologies integrated into iOS/Apple and Android/Google devices. Technologies that allow a faster charge level than conventional ones, working through an exchange between the terminal and the charger. PC and ABS material
ModelOther
Number of USB-A ports0
Number of USB-C ports2
Operating voltage220-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.05 W
Connection MethodPlug clamp
Type of mountingRecessed mounted (plaster)
ColourBlack
RAL number9017
Device width68 mm
Device height45 mm
Device Depth42 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth33.5 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output63
Nominal current1-1 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
