View larger
Images are for illustrative purposes only. Please refer to data sheet for details

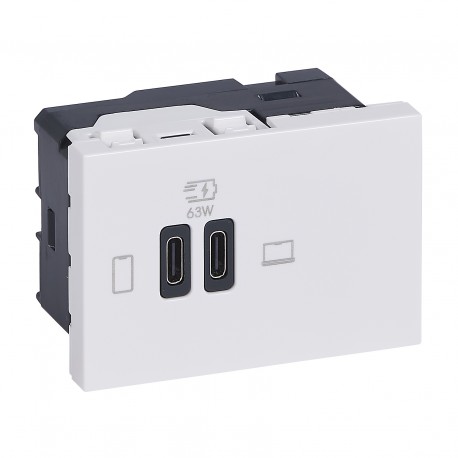

077673L LEGRAND MO-2USB C+C 3M 63W BL
077673L
077673L
LEGRAND
1 Pcs.
MO-2USB C+C 3M 63W BL
USB Power Delivery Charger Base 3 modules two ports Type C+C - 63W - White
USB Power Delivery 3mod charger base two ports Type C+C - 63W - White
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
It allows you to power and charge multimedia terminals: PCs, tablets, smartphones. USB Power Delivery and Quick charge are new fast charging technologies integrated into iOS/Apple and Android/Google devices. Technologies that allow a faster charge level than conventional ones, working through an exchange between the terminal and the charger. PC and ABS material
| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 2 |
| Operating voltage | 220-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.05 W |
| Connection Method | Plug clamp |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| RAL number | 9003 |
| Device width | 68 mm |
| Device height | 45 mm |
| Device Depth | 42 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33.5 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 63 |
| Nominal current | 1-1 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwless terminal |
| Operating voltage (EF003983) | 220 V |
| Device depth (EF008810) | 42 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 2 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.050 W |
| Device width (EF008808) | 68 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | White |
| Number of ports USB-A (EF000997) | 0 |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
