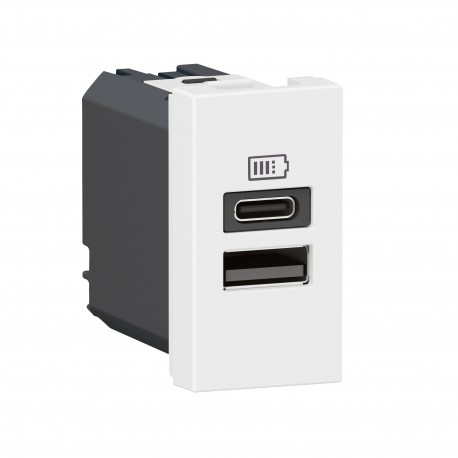

077670L LEGRAND MO-2USB A+C 1M 15W BL
077670L
077670L
LEGRAND
10 Pcs.
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 077670L Legrand Mo-2usb A+c 1m 15w Bl serves as a modular flush-mounted power supply unit designed to support mixed USB device charging in electrical installations. Such hardware is commonly deployed in administrative and residential settings to maintain accessible charging points within standard wall boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Suitable for degree of protection (IP) (EF006755): IP40
- Connection type (EF000124): Screwed terminal
- Operating voltage (EF003983): 100 V
- Device depth (EF008810): 41 mm
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
- Number of ports USB-C (EF017049): 1
- Min. depth of built-in installation box (EF012278): 40 mm
- Output voltage (EF003933): 5 V
- Power consumption (EF000346): 0.091 W
- Device width (EF008808): 22.5 mm
- Device height (EF008809): 45 mm
- Colour (EF000007): White
- Number of ports USB-A (EF000997): 1
- RAL-number (EF000116): 9003
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 1 |
| Number of USB-C ports | 1 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-5 V |
| Power consumption | 0.091 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| RAL number | 9003 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 32.5 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| USB Power Output | 15 |
| Nominal current | 0.5-0.5 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
