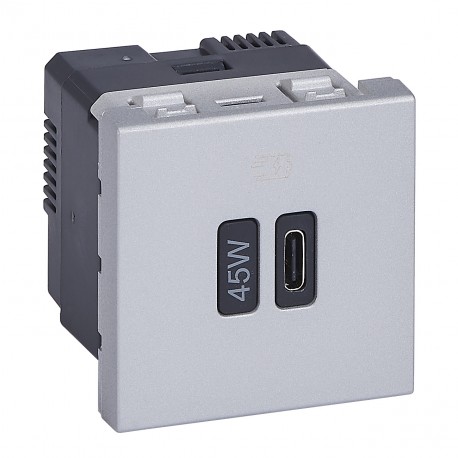

LEGRAND 077656L 077656L LEGRAND MO-USB C 2M 45W AL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077656L LEGRAND MO-USB C 2M 45W AL

077656L

077656L

LEGRAND

1 Pcs.

MO-USB C 2M 45W AL USB Power Delivery Charger Base 2 Single Port Type C Modules - 45W - Aluminum USB Power Delivery 2mod Single Port Type C Charger Base - 45W - Aluminum

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 077656L is a flush-mounted USB charger designed to deliver high-capacity power delivery output for electronic devices directly from wall-mounted enclosures. Electrical installers select these modules to provide fast, reliable charging integration in modern commercial and institutional buildings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method: Flush mounted
  • Suitable for degree of protection (IP): IP40
  • Connection type: Screwed terminal
  • Operating voltage: 220 V
  • Device depth: 45 mm
  • Impact strength: IK04
  • Anti-bacterial treatment: No
  • Number of ports USB-C: 1
  • Min. depth of built-in installation box: 40 mm
  • Output voltage: 5 V
  • Power consumption: 0.074 W
  • Device width: 45 mm
  • Device height: 45 mm
  • Colour: Aluminium
  • Number of ports USB-A: 0
  • Max. output current: 3000 mA

More info

▲
It allows you to power and charge multimedia terminals: PCs, tablets, smartphones. USB Power Delivery and Quick charge are new fast charging technologies integrated into iOS/Apple and Android/Google devices. Technologies that allow a faster charge level than conventional ones, working through an exchange between the terminal and the charger. PC and ABS material
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage220-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.074 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
Colouraluminium
Device width45 mm
Device height45 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth36.5 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output45
Nominal current0.8-0.8 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
