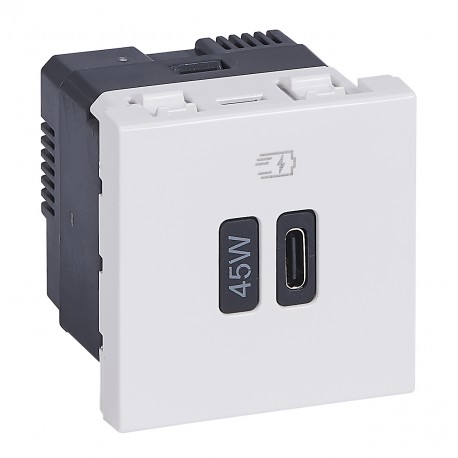

LEGRAND 077655L 077655L LEGRAND MO-USB C 2M 45W BL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077655L LEGRAND MO-USB C 2M 45W BL

077655L

077655L

LEGRAND

1 Pcs.

MO-USB C 2M 45W BL USB Power Delivery Charger Base 2 Single Port Type C Modules - 45W - White USB Power Delivery 2mod Single Port Type C Charger Base - 45W - White

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Deployment of the 077655L Legrand Mo-Usb C 2m 45w Bl enables high-capacity USB-C charging directly from structural wall connections in commercial spaces. Flush-mounted charging modules are widely utilized to supply dependable, direct DC power for modern portable equipment without external adapters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 220 V
  • Device depth (EF008810): 45 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.074 W
  • Device width (EF008808): 45 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • Max. output current (EF001315): 3000 mA

More info

▲
It allows you to power and charge multimedia terminals: PCs, tablets, smartphones. USB Power Delivery and Quick charge are new fast charging technologies integrated into iOS/Apple and Android/Google devices. Technologies that allow a faster charge level than conventional ones, working through an exchange between the terminal and the charger. PC and ABS material
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage220-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.074 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourWhite
Device width45 mm
Device height45 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth36.5 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output45
Nominal current0.8-0.8 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
