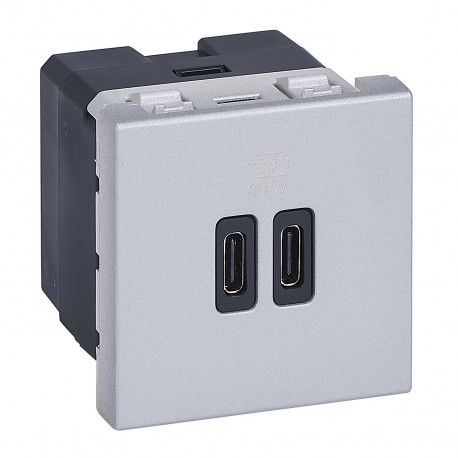

077632L LEGRAND MO-2USB C+C 2M 30W AL
077632L
077632L
LEGRAND
1 Pcs.
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
USB power supply 077632L LEGRAND MO-2USB C+C 2M 30W AL converts line voltage into safe direct current to charge modern portable electronics in professional environments. These devices fit neatly into standard flush mounting enclosures to provide accessible charging stations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Suitable for degree of protection (IP) (EF006755): IP40
- Connection type (EF000124): Screwed terminal
- Operating voltage (EF003983): 100 V
- Device depth (EF008810): 45 mm
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
- Number of ports USB-C (EF017049): 2
- Min. depth of built-in installation box (EF012278): 40 mm
- Output voltage (EF003933): 5 V
- Power consumption (EF000346): 0.063 W
- Device width (EF008808): 45 mm
- Device height (EF008809): 45 mm
- Colour (EF000007): Aluminium
- Number of ports USB-A (EF000997): 0
- Max. output current (EF001315): 3000 mA
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 2 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.063 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | aluminium |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 45 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 36.5 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 30 |
| Nominal current | 1-1 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
