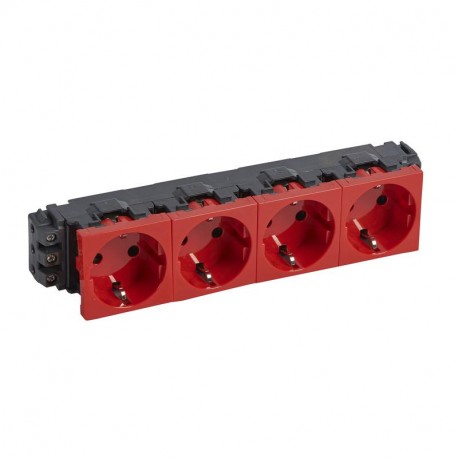

077614 LEGRAND MO-SOCKET 4X2P+T DLP RO TOR
077614
077614
LEGRAND
5 Pcs.
MO-SOCKET 4X2P+T DLP RO TOR
Mosaic socket for DLP channeling - 4x2P+T - Screwed terminals - Red
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Quadruple trunking-mounted power distribution is enabled by the 077614 LEGRAND MO-SOCKET 4X2P+T DLP RO TOR socket assembly. Multiple outlet units facilitate organized wiring systems in commercial raceways and industrial work stations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Trunking mounted
- Special power supply (EF001334): Additional safety power supply (red)
- Connection type (EF000124): Screwed terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 8
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- With hinged lid (EF000117): No
More info
▲
Mosaic power outlets designed for DLP channel mounting. These sockets have shutters and connection on both sides for mounting on DLP channels with 65 and 85 mm cover, in combination with brackets and channel plates. They allow a direct connection without tools and an intuitive disconnection without disassembling the stand. In addition, they have screw terminals for safe installation. Available in red and with 4x2P+T configuration.
| Model | Power socket with protective contact CEE 7/3 (type F) |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Other |
| Number of active (round) contacts | 8 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, Suitable for channel |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 4 |
| Number of modules (in case of modular design) | 8 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Screw-on terminal |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Red |
| RAL number (similar) | 3020 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | Additional Safety Power (Red) |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
|---|---|
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Bright |
| Antibacterial treatment | No |
| With loop function | Yes |
| With on/off switch | No |
| Switching element color | Red |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | IK04 |
| Device width | 210 mm |
| Device height | 45 mm |
| Device Depth | 45 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Installation Depth | 45 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 4-4 mm² |
| Cable Holder | Other |
| Connected Object | No |
