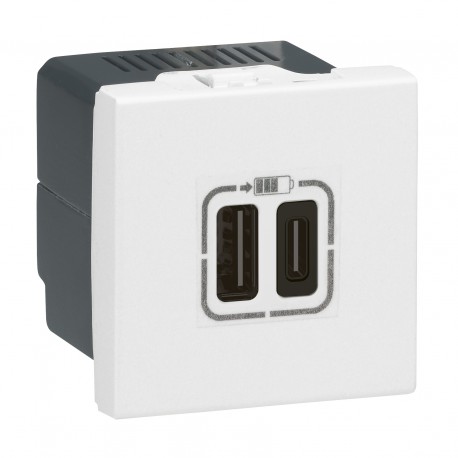

077592 LEGRAND MO-BASE USB A+C 3A 15W 2M BL
077592
077592
LEGRAND
1 Pcs.
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as a Legrand 077592 USB charger base, this flush-mounted module brings direct electronic device charging into standard wall configurations. Units of this type are widely specified for commercial buildings to streamline workspace connectivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Suitable for degree of protection (IP) (EF006755): IP40
- Connection type (EF000124): Screwed terminal
- Operating voltage (EF003983): 100 V
- Device depth (EF008810): 42 mm
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
- Number of ports USB-C (EF017049): 1
- Min. depth of built-in installation box (EF012278): 40 mm
- Output voltage (EF003933): 5 V
- Power consumption (EF000346): 0.066 W
- Device width (EF008808): 45 mm
- Device height (EF008809): 45 mm
- Colour (EF000007): White
- Number of ports USB-A (EF000997): 1
- RAL-number (EF000116): 9003
More info
▲- Pack (number of units)1
- Volume (dm3)0.266
- Weight (g)74.00
- Universal charger for portable devices
- Conform to IEC 62680-1-3
- Surge protection greater than 1 kV
- Consumption in passive mode less than 0.07 W
- Power supply AC/DC efficiency at highest level (VI)
- 2 x 2.5 mm² screw terminals
- Class II SELV
- Supplied cordless
- For smartphones and fast charging tablets PC
- 2 modules
- White
- Can be installed in receptacles for floor sockets
