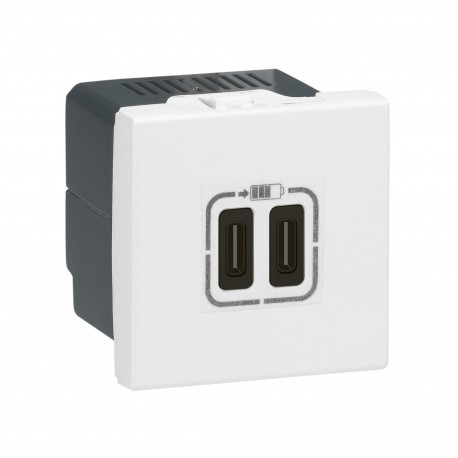

LEGRAND 077590 077590 LEGRAND MO-BASE USB C+C 3A 15W 2M BL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077590 LEGRAND MO-BASE USB C+C 3A 15W 2M BL

077590

077590

LEGRAND

1 Pcs.

MO-BASE USB C+C 3A 15W 2M BL Double USB Type-C + Type-C charging sockets Mosaic - 5 V - 3 A - 15 W - 2 modules - white USB charger base 2mod two ports Type C+C - 3A - 15W - White

Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

USB charger type 077590 LEGRAND MO-BASE USB C+C 3A 15W 2M BL supplies reliable dual Type-C power delivery within standard flush wall installations. These components are commonly selected for architectural wiring projects to provide clean, built-in charging points for personal electronics.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 42 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.064 W
  • Device width (EF008808): 45 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9003

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.266
  • Weight (g)72.00
Product characteristics
USB charging sockets Type-C
  • Universal charger for portable devices
  • Conform to IEC 62680-1-3
  • Surge protection greater than 1 kV
  • Consumption in passive mode less than 0.07 W
  • Power supply AC/DC efficiency at highest level (VI)
  • 2 x 2.5 mm² screw terminals
  • Class II SELV
  • Supplied cordless
Double USB Type-C + USB Type-C sockets - 5 V - 3 A - 15 W
  • For smartphones and fast charging tablets PC
  • 2 modules
  • White
  • Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - USB charging sockets
