View larger
Images are for illustrative purposes only. Please refer to data sheet for details

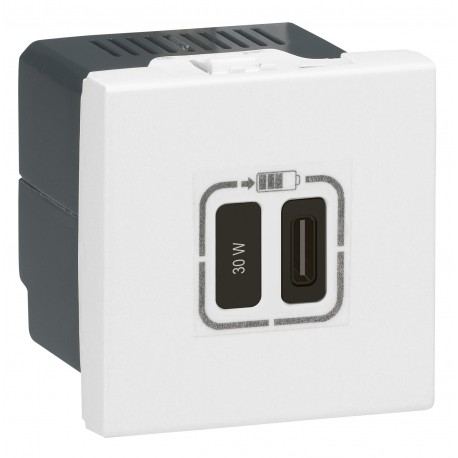

077585L LEGRAND MO-USB C 2M 30W BL
077585L
077585L
LEGRAND
1 Pcs.
MO-USB C 2M 30W BL
USB Power Delivery 2 module charger base - Single Port Type C - 30W - White
Automation > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
1 USB type C charger base. 2 modules. 3A, 30 W, 5.0V. Power Delivery, 5- 9 -12-15V (Optimizes the load by supplying the terminal with as much voltage as it can withstand). Fast charging. Technology that allows a faster charge level than conventional ones, working through an exchange between the terminal and the charger. White color RAL 9003. Depth 38mm. It can be installed in 40mm boxes. Compatible with Apple and Android devices. Recommended for indoor use. Dimension 45x45x45mm. IK04, IP40
| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 1 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.059 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| RAL number | 9003 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 45 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 36.5 mm |
| Operating Temperature | 0-45 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 30 |
| Nominal current | 1-1 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 45 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.059 W |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | White |
| Number of ports USB-A (EF000997) | 0 |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
