View larger
Images are for illustrative purposes only. Please refer to data sheet for details

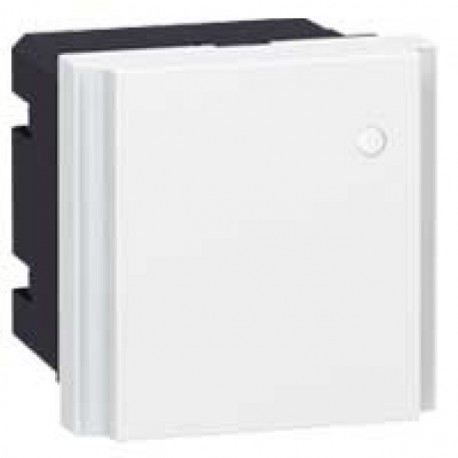

077540 LEGRAND MO-ROD 16A
077540
077540
LEGRAND
1 Pcs.
MO-ROD 16A
Voltage surge protector Mosaic -16 A -250 V~ -50/60 Hz -l max 6 kA -2 modules -white
Mosaic Surge Protector - 16A - 2mod - White
Automation > Surge protection device for terminal equipment
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.547
- Weight (g)121.00
Product characteristics
Voltage surge protector- 16 A - 250 V~ - 50/60 Hz
- Protection against overvoltages of atmospheric or industrial origin, in an installation already protected by a voltage surge protector in the panel
- For installation downstream of an RCBO, protects all the sockets wired in cascade with the voltage surge protector
- Operation displayed by indicator light
- Keeps the socket energised after an overvoltage (mains or lightning strike) until replacement of module Cat.No 0 775 41
- Nominal discharge current (In): 1.5 kA
- Maximum permissible current (Imax): 6 kA
- Protection level (Up): L-N: 1 kV; N-PE: 1 kV
- Open circuit voltage (Uoc): 3 kV
- Conform to standards EN 61643-11
- White
- 2 modules
General characteristics
Mosaic™ Programme mechanisms - voltage surge protector, replacement module, buzzers, bells, blanking plates, cable outlets and proximity MCBs| Feature Name | Feature Value |
|---|---|
| With interference suppressor filter (EF006025) | Yes |
| Nominal voltage DC (EF004221) | 230 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Category type 3 (EF004231) | No |
| Max. continuous voltage AC (EF004198) | 250 V |
| Nominal voltage AC (EF004220) | 230 V |
| Nominal discharge surge current (8/20) (L-N) (EF004216) | 1 kA |
| Max. continuous voltage DC (EF004777) | 250 V |
| Voltage protection level L-PE/N-PE (EF004237) | 1 kV |
| Total discharge current (8/20) (L+N-PE) (EF004215) | 1.5 kA |
| Voltage protection level L-N (EF004236) | 1 kV |
| Mounting method (EF000003) | Surface mounted/recessed mounted |
| Signalling at the device (EF004241) | Optic |
| Number of poles (EF001391) | 6 |
| With remote signalling contact (EF000422) | No |
| Nominal load current (EF004219) | 16 A |
| Voltage protection level (EF003525) | 1 kV |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 2.5 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 2.5 mm² |
