View larger
Images are for illustrative purposes only. Please refer to data sheet for details

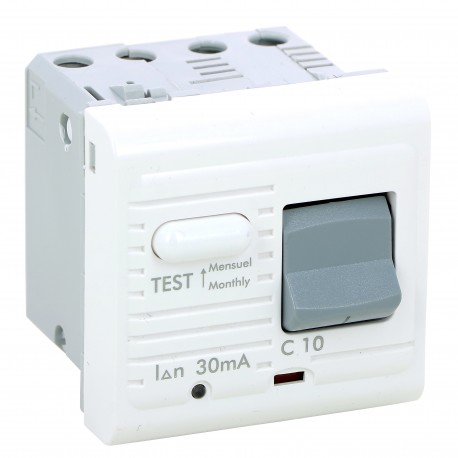

077531 LEGRAND MO-INTER DIF 10A 30MA 2M BL
077531
077531
LEGRAND
1 Pcs.
MO-INTER DIF 10A 30MA 2M BL
RCBO Mosaic - 1 pole - with N 230 V~ and test button - 10 A - 30 mA - 2 modules -white
Mosaic automatic differential switch - 1P+N - 10A - 30mA- 2mod - White
Automation > Earth leakage circuit breaker
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.188
- Weight (g)85.00
Product characteristics
Proximity MCBs- Used for local protection of part of a circuit against overloads and short circuits
- Used in addition to the main protection device
- Due to its proximity to the user and its discrimination with the main protection device, the restart can be immediate
- 2 modules
- Provides additional protection of people (premises with conductive flooring, presence of water, etc.) against direct contact with live parts or earth leakages
- White
- 10 A - 30 mA with test button
General characteristics
Mosaic™ Programme mechanisms - voltage surge protector, replacement module, buzzers, bells, blanking plates, cable outlets and proximity MCBs| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | 50 Hz |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP21 |
| Leakage current type (EF002560) | Other |
| Voltage type (EF000187) | AC |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Anti-nuisance tripping version (EF009497) | Yes |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 3 kA |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 3 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 3 kA |
| Rated fault current (EF002358) | 0.03 A |
| Number of protected poles (EF005548) | 1 |
| Built-in depth (EF000218) | 40 mm |
| Number of poles (total) (EF008618) | 2 |
| Width in number of modular spacings (EF002950) | 45 |
| Rated current (EF000227) | 10 A |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
