View larger
Images are for illustrative purposes only. Please refer to data sheet for details

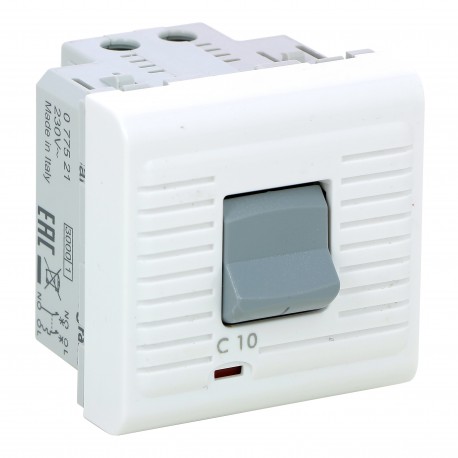

077521 LEGRAND MO-INTER MAG 1P+N 10A 2M BL
077521
077521
LEGRAND
1 Pcs.
MO-INTER MAG 1P+N 10A 2M BL
Proximity MCB Mosaic - single pole - with neutral 230 V~ - 10 A - 2 modules - white
Mosaic automatic circuit breaker - 1P+N - 10A - 2mod - White
Automation > Miniature circuit breaker (MCB)
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.188
- Weight (g)62.00
Product characteristics
Proximity MCBs- Used for local protection of part of a circuit against overloads and short circuits
- Used in addition to the main protection device
- Due to its proximity to the user and its discrimination with the main protection device, the restart can be immediate
- 2 modules
- Can also be used as a local consumption limiter (depending on its rating)
- Breaking capacity: 3000 A - NF C 61-410 (10/16 A), 1500 A - NF C 61-410 (6 A)
- White
- 10 A
General characteristics
Mosaic™ Programme mechanisms - voltage surge protector, replacement module, buzzers, bells, blanking plates, cable outlets and proximity MCBs| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP21 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 40 mm |
| Number of poles (total) (EF008618) | 2 |
| Width in number of modular spacings (EF002950) | 45 |
| Rated current (EF000227) | 10 A |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
