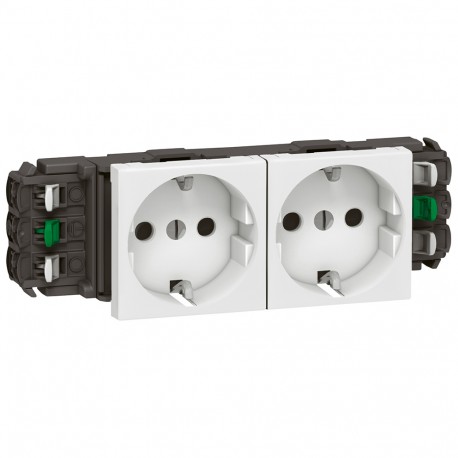

077402 LEGRAND MO-SOCKET 2x2P+T SCHUKO DLP
077402
077402
LEGRAND
10 Pcs.
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 077402 MO-SOCKET 2x2P+T SCHUKO DLP serves as a dual Schuko socket module designed specifically for trunking and cable management raceways. Dual socket units provide expanded plug-in capacity for power cords within office channels, laboratories, and technical workspaces.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Trunking mounted
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 4
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- With hinged lid (EF000117): No
More info
▲| Model | Power socket with protective contact CEE 7/3 (type F) |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Other |
| Number of active (round) contacts | 4 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, Suitable for channel |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 2 |
| Number of modules (in case of modular design) | 4 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Plug clamp |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | White |
| RAL number (similar) | 9003 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | none |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
|---|---|
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Bright |
| Antibacterial treatment | No |
| With loop function | Yes |
| With on/off switch | No |
| Switching element color | White |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Device width | 135 mm |
| Device height | 45 mm |
| Device Depth | 44 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Installation Depth | 44 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Connection Cable Type | Rigid |
| Core cross-section | 2.5-2.5 mm² |
| Cable Holder | Other |
| Connected Object | No |
