> LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS > 077290
LEGRAND 077290 077290 LEGRAND MO-BASE 2X2P+T BL AUTO PIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

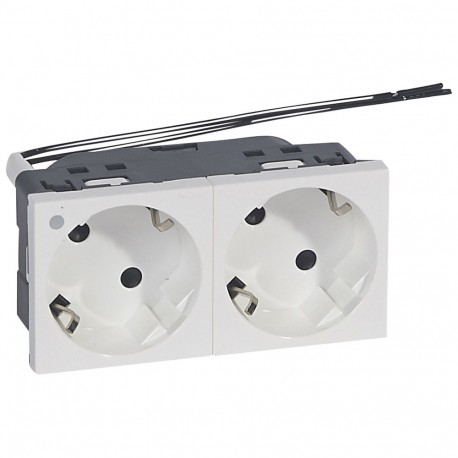

077290 LEGRAND MO-BASE 2X2P+T BL AUTO PIL

077290

077290

LEGRAND

10 Pcs.

MO-BASE 2X2P+T BL AUTO PIL Multi-support multiple socket Mosaic - 2 x 2P+E with indicator - standard Mosaic multi-current base - 2x2P+T - with indicator - White

Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand 077290 LEGRAND MO-BASE 2X2P+T BL AUTO PIL socket module acts as a modular power distribution insert within raceways, floor boxes, and grid systems. Modular receptacle blocks allow electricians to configure multi-outlet assemblies tailored to specific project needs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): Yes
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Module frame/grid
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 4
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • With hinged lid (EF000117): No

More info

▲
  • Pack (number of units)10
  • Volume (dm3)2.311
  • Weight (g)799.00
Product characteristics
Multi-support multiple socket outlets - German standard
  • For installation in flush-mounting box, surface mounting box, floor box, column module, desktop multi-outlet extension, office module and trunking
  • Inclined 45° - IK 07
  • Connection by automatic terminals
2 x 2P+E
  • White - with indicator 230 V - 2.4 mA (supplied)
General characteristics
Mosaic™ Programme mechanisms - German standard multi-support single and multiple socket outlets
