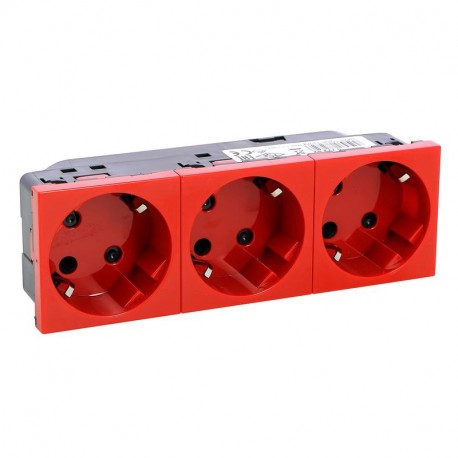

077282 LEGRAND MO-BASE 3X2P+T RO AUTO SEL
077282
077282
LEGRAND
10 Pcs.
MO-BASE 3X2P+T RO AUTO SEL
Multi-support multiple socket Mosaic - 3 x 2P+E automatic terminals - tamperproof
Mosaic Multi-Current Base - 3x2P+T - Selective Shutter - Red
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 077282 is a multi-gang socket outlet assembly designed for modular grid frames in specialized power distribution networks. Multi-outlet units supply power to clustered equipment banks while maintaining dedicated circuit segregation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): Yes
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Module frame/grid
- Special power supply (EF001334): Additional safety power supply (red)
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 6
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- With hinged lid (EF000117): No
More info
▲- Pack (number of units)10
- Volume (dm3)4.047
- Weight (g)1 088.00
Product characteristics
Multi-support multiple socket outlets - German standard- For installation in flush-mounting box, surface mounting box, floor box, column module, desktop multi-outlet extension, office module and trunking
- Inclined 45° - IK 07
- Connection by automatic terminals
- Red – tamperproof
- To be used with tamperproof insert Cat.No 0 502 99
General characteristics
Mosaic™ Programme mechanisms - German standard multi-support single and multiple socket outlets
